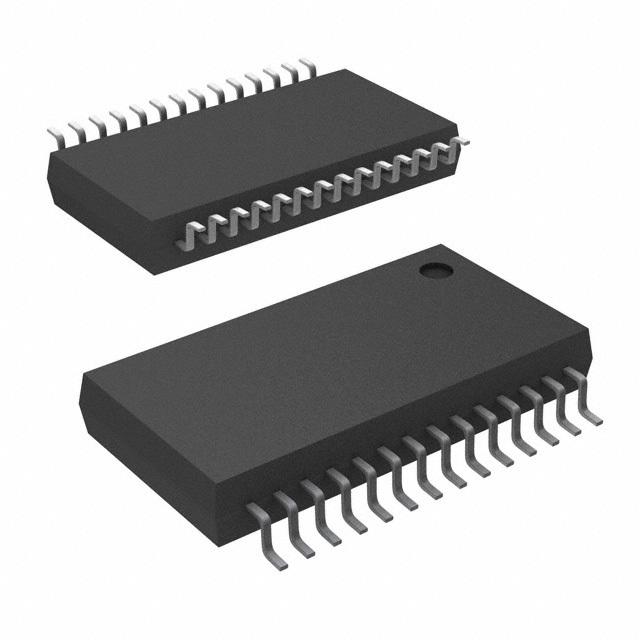

| Part Number | ADS8509IBDBG4 | ADS8509IBDWG4 | ADS8519IBDBG4 | ADS8505IBDBG4 |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Number of Bits | 16 | 16 | 16 | 16 |
| Sampling Rate (Per Second) | 250k | 250k | 250k | 250k |
| Number of Inputs | 1 | 1 | 1 | 1 |
| Input Type | Single Ended | Single Ended | Single Ended | Single Ended |
| Data Interface | SPI | SPI | SPI | Parallel |
| Configuration | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC |
| Ratio - S/H:ADC | 1:1 | 1:1 | 1:1 | 1:1 |
| Number of A/D Converters | 1 | 1 | 1 | 1 |
| Architecture | SAR | SAR | SAR | SAR |
| Reference Type | External, Internal | External, Internal | External, Internal | External, Internal |
| Voltage - Supply, Analog | 5V | 5V | 5V | 5V |
| Voltage - Supply, Digital | 5V | 5V | 1.65V ~ 5.25V | 5V |
| Features | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) | 20-SOIC (0.295", 7.50mm Width) | 28-SSOP (0.209", 5.30mm Width) | 28-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 28-SSOP | 20-SOIC | 28-SSOP | 28-SSOP |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
