| Part Number | ADS807E/1K | ADS800E/1K | ADS803E/1K | ADS804E/1K | ADS805E/1K |
|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Obsolete | Active | Active | Active |
| Number of Bits | 12 | 12 | 12 | 12 | 12 |
| Sampling Rate (Per Second) | 53M | 40M | 5M | 10M | 20M |
| Number of Inputs | 1 | - | 1 | 1 | 1 |
| Input Type | Differential, Single Ended | - | Differential, Single Ended | Differential, Single Ended | Differential, Single Ended |
| Data Interface | Parallel | Parallel | Parallel | Parallel | Parallel |
| Configuration | S/H-ADC | - | S/H-ADC | S/H-ADC | S/H-ADC |
| Ratio - S/H:ADC | 1:1 | - | 1:1 | 1:1 | 1:1 |
| Number of A/D Converters | 1 | 1 | 1 | 1 | 1 |
| Architecture | Pipelined | - | Pipelined | Pipelined | Pipelined |
| Reference Type | External, Internal | - | External, Internal | External, Internal | External, Internal |
| Voltage - Supply, Analog | 5V | - | 5V | 5V | 5V |
| Voltage - Supply, Digital | 5V | - | 5V | 5V | 5V |
| Features | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |

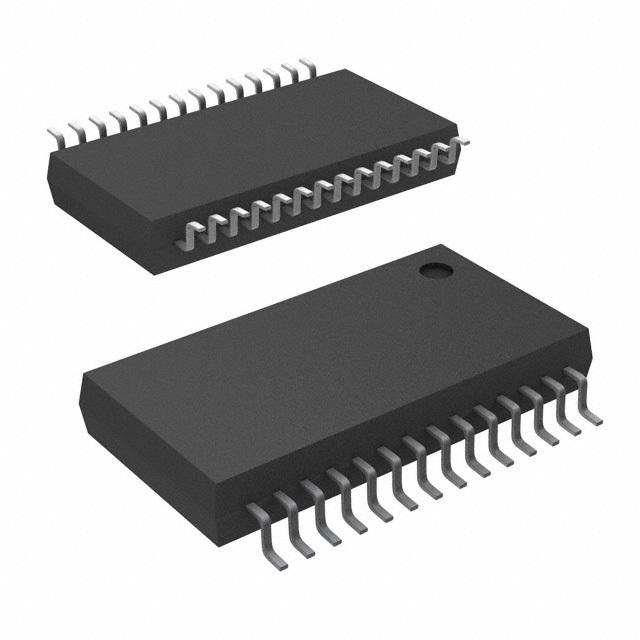

| Package / Case | 28-SSOP (0.209", 5.30mm Width) | 28-SSOP (0.209", 5.30mm Width) | 28-SSOP (0.209", 5.30mm Width) | 28-SSOP (0.209", 5.30mm Width) | 28-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 28-SSOP | 28-SSOP | 28-SSOP | 28-SSOP | 28-SSOP |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
