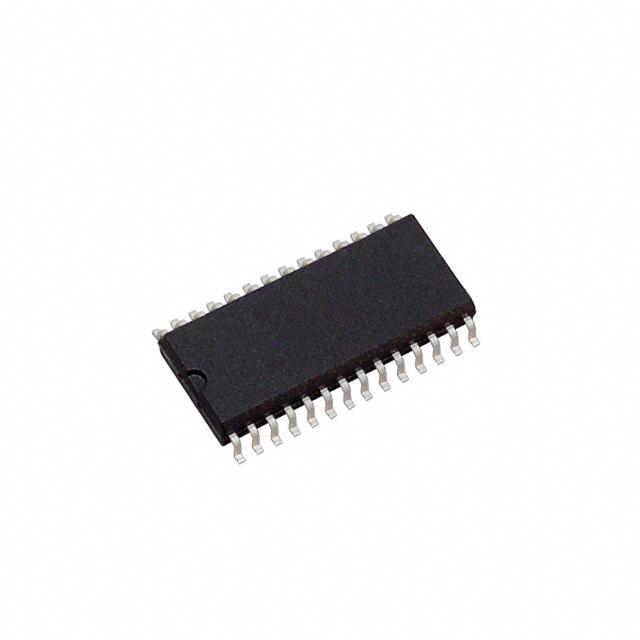

| Part Number | ADS7815UG4 | ADS7816UG4 | ADS7817UG4 | ADS7805UG4 | ADS7810UG4 | ADS7813UG4 | ADS7815UE4 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key | Obsolete | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Obsolete |
| Number of Bits | 16 | 12 | 12 | 16 | 12 | 16 | 16 |
| Sampling Rate (Per Second) | 250k | 200k | 200k | 100k | 800k | 40k | 250k |
| Number of Inputs | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Input Type | Single Ended | Differential | Differential | Single Ended | Single Ended | Single Ended | Single Ended |
| Data Interface | Parallel | SPI | SPI | Parallel | Parallel | SPI | Parallel |
| Configuration | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC |
| Ratio - S/H:ADC | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 |
| Number of A/D Converters | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Architecture | SAR | SAR | SAR | SAR | SAR | SAR | SAR |
| Reference Type | External, Internal | External | External | External, Internal | External, Internal | External, Internal | External, Internal |
| Voltage - Supply, Analog | ±5V | 5V | 5V | 5V | ±5V | 5V | ±5V |
| Voltage - Supply, Digital | 5V | 5V | 5V | 5V | 5V | 5V | 5V |
| Features | - | - | - | - | - | - | - |
| Operating Temperature | -25°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -25°C ~ 85°C | -40°C ~ 70°C | -40°C ~ 85°C | -25°C ~ 85°C |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 28-SOIC (0.295", 7.50mm Width) | 28-SOIC (0.295", 7.50mm Width) | 16-SOIC (0.295", 7.50mm Width) | 28-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 28-SOIC | 8-SOIC | 8-SOIC | 28-SOIC | 28-SOIC | 16-SOIC | 28-SOIC |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
