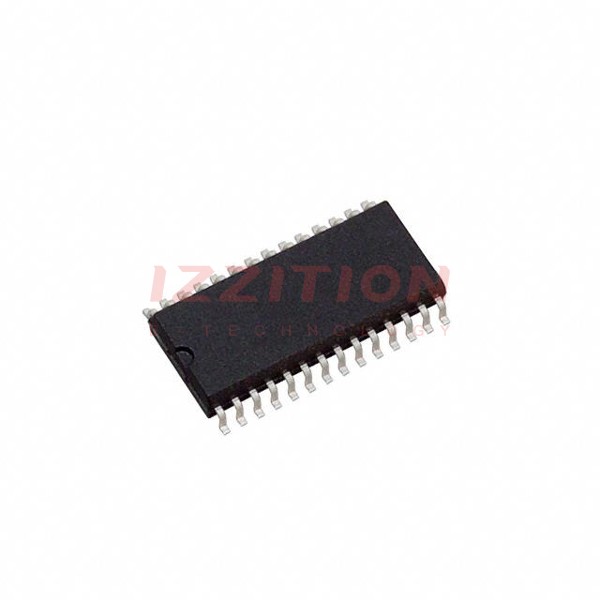

| Part Number | ADS7806U | ADS7816U | ADS7807U | ADS7806UB | ADS7809U | ADS7808U | ADS7804U | ADS7805U | ADS7806P |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Active | Active | Active | Active | Active | Active | Active | Obsolete |
| Number of Bits | 12 | 12 | 16 | 12 | 16 | 12 | 12 | 16 | 12 |
| Sampling Rate (Per Second) | 40k | 200k | 40k | 40k | 100k | 100k | 100k | 100k | 40k |
| Number of Inputs | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Input Type | Single Ended | Differential | Single Ended | Single Ended | Single Ended | Single Ended | Single Ended | Single Ended | Single Ended |
| Data Interface | SPI, Parallel | SPI | SPI, Parallel | SPI, Parallel | SPI, DSP | SPI, DSP | Parallel | Parallel | SPI, Parallel |
| Configuration | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC |
| Ratio - S/H:ADC | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 |
| Number of A/D Converters | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Architecture | SAR | SAR | SAR | SAR | SAR | SAR | SAR | SAR | SAR |
| Reference Type | External, Internal | External | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal |
| Voltage - Supply, Analog | 5V | 5V | 5V | 5V | 5V | 5V | 5V | 5V | 5V |
| Voltage - Supply, Digital | 5V | 5V | 5V | 5V | 5V | 5V | 5V | 5V | 5V |
| Features | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -25°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) | 8-SOIC (0.154", 3.90mm Width) | 28-SOIC (0.295", 7.50mm Width) | 28-SOIC (0.295", 7.50mm Width) | 20-SOIC (0.295", 7.50mm Width) | 20-SOIC (0.295", 7.50mm Width) | 28-SOIC (0.295", 7.50mm Width) | 28-SOIC (0.295", 7.50mm Width) | 28-DIP (0.300", 7.62mm) |
| Supplier Device Package | 28-SOIC | 8-SOIC | 28-SOIC | 28-SOIC | 20-SOIC | 20-SOIC | 28-SOIC | 28-SOIC | 28-PDIP |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Through Hole |
