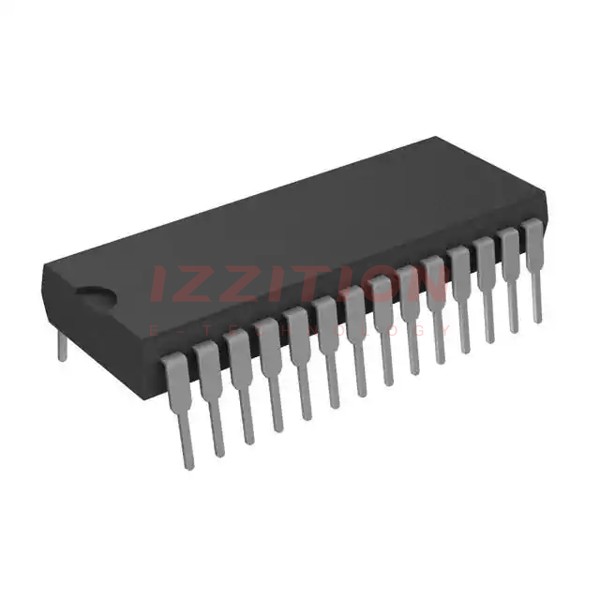

| Part Number | ADS774JPG4 | ADS774JUG4 | ADS774KPG4 | ADS774JEG4 |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Discontinued at Digi-Key | Obsolete | Obsolete |
| Number of Bits | 12 | 12 | 12 | 12 |
| Sampling Rate (Per Second) | 125k | 125k | 125k | 125k |
| Number of Inputs | 1 | 1 | 1 | 1 |
| Input Type | Single Ended | Single Ended | Single Ended | Single Ended |
| Data Interface | Parallel | Parallel | Parallel | Parallel |
| Configuration | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC |
| Ratio - S/H:ADC | 1:1 | 1:1 | 1:1 | 1:1 |
| Number of A/D Converters | 1 | 1 | 1 | 1 |
| Architecture | SAR | SAR | SAR | SAR |
| Reference Type | External, Internal | External, Internal | External, Internal | External, Internal |
| Voltage - Supply, Analog | 5V, -16.5V ~ 5.5 | 5V, -16.5V ~ 5.5 | 5V, -16.5V ~ 5.5 | 5V, -16.5V ~ 5.5 |
| Voltage - Supply, Digital | 5V | 5V | 5V | 5V |
| Features | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 28-DIP (0.600", 15.24mm) | 28-SOIC (0.295", 7.50mm Width) | 28-DIP (0.600", 15.24mm) | 28-DIP (0.300", 7.62mm) |
| Supplier Device Package | 28-PDIP | 28-SOIC | 28-PDIP | 28-PDIP |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Through Hole |
