| Part Number | ADS5520IPAPR | ADS5521IPAPR | ADS5522IPAPR | ADS5500IPAPR | ADS5510IPAPR | ADS5520IPAP |
|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Active |
| Number of Bits | 12 | 12 | 12 | 14 | 11 | 12 |
| Sampling Rate (Per Second) | 125M | 105M | 80M | 125M | 125M | 125M |
| Number of Inputs | 1 | 1 | 1 | 1 | 1 | 1 |
| Input Type | Differential | Differential | Differential | Differential | Differential | Differential |
| Data Interface | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel |
| Configuration | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC |
| Ratio - S/H:ADC | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 |
| Number of A/D Converters | 1 | 1 | 1 | 1 | 1 | 1 |
| Architecture | Pipelined | Pipelined | Pipelined | Pipelined | Pipelined | Pipelined |
| Reference Type | Internal | Internal | Internal | Internal | Internal | Internal |
| Voltage - Supply, Analog | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V |
| Voltage - Supply, Digital | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V |
| Features | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |

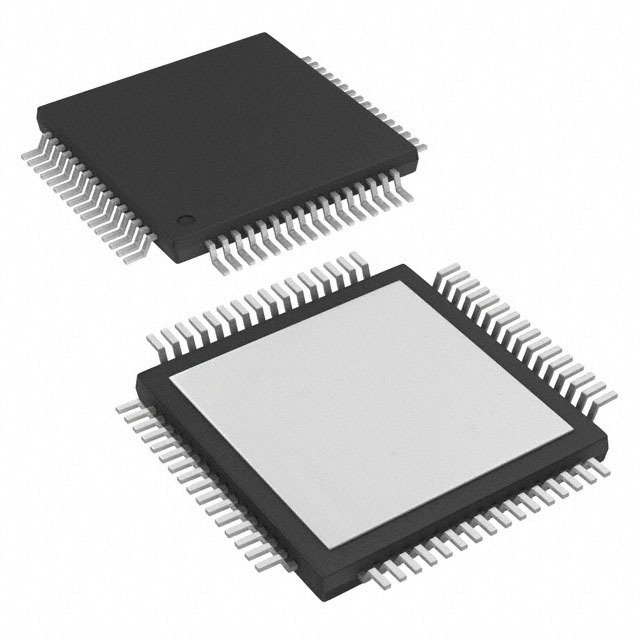

| Package / Case | 64-PowerTQFP | 64-PowerTQFP | 64-PowerTQFP | 64-PowerTQFP | 64-PowerTQFP | 64-PowerTQFP |
| Supplier Device Package | 64-HTQFP (10x10) | 64-HTQFP (10x10) | 64-HTQFP (10x10) | 64-HTQFP (10x10) | 64-HTQFP (10x10) | 64-HTQFP (10x10) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
