Please send RFQ , we will respond immediately.
| Part Number | ADS5407IZAY | ADS5407IZAYR | ADS5409IZAY | ADS5401IZAY | ADS5402IZAY | ADS5403IZAY | ADS5404IZAY |
|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Number of Bits | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Sampling Rate (Per Second) | 500M | 500M | 900M | 800M | 800M | 500M | 500M |
| Number of Inputs | 2 | 2 | 2 | 1 | 2 | 1 | 2 |
| Input Type | Differential | Differential | Differential | Differential | Differential | Differential | Differential |
| Data Interface | LVDS - Parallel | LVDS - Parallel | LVDS - Parallel | Parallel | Parallel | Parallel | LVDS - Parallel |
| Configuration | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC |
| Ratio - S/H:ADC | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 |
| Number of A/D Converters | 2 | 2 | 2 | 1 | 2 | 1 | 2 |
| Architecture | Pipelined | Pipelined | Pipelined | Pipelined | Pipelined | Pipelined | Pipelined |
| Reference Type | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal |
| Voltage - Supply, Analog | 1.7V ~ 1.9V, 3.15V ~ 3.45V | 1.7V ~ 1.9V, 3.15V ~ 3.45V | 1.7V ~ 1.9V, 3.15V ~ 3.45V | 1.7V ~ 1.9V, 3.15V ~ 3.45V | 1.7V ~ 1.9V, 3.15V ~ 3.45V | 1.7V ~ 1.9V, 3.15V ~ 3.45V | 1.7V ~ 1.9V, 3.15V ~ 3.45V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V | 1.7V ~ 1.9V | 1.7V ~ 1.9V | 1.7V ~ 1.9V | 1.7V ~ 1.9V | 1.7V ~ 1.9V | 1.7V ~ 1.9V |
| Features | Simultaneous Sampling | Simultaneous Sampling | Simultaneous Sampling | - | Simultaneous Sampling | - | Simultaneous Sampling |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |

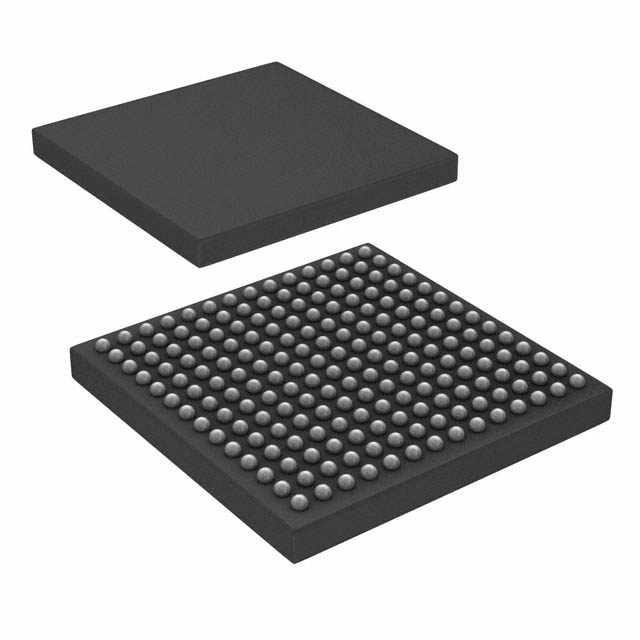

| Package / Case | 196-LFBGA | 196-LFBGA | 196-LFBGA | 196-LFBGA | 196-LFBGA | 196-LFBGA | 196-LFBGA |
| Supplier Device Package | 196-NFBGA (12x12) | 196-NFBGA (12x12) | 196-NFBGA (12x12) | 196-NFBGA (12x12) | 196-NFBGA (12x12) | 196-NFBGA (12x12) | 196-NFBGA (12x12) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
