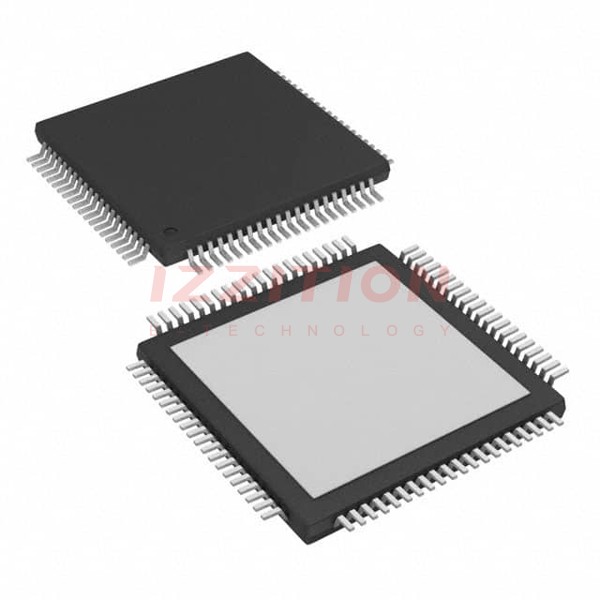

| Part Number | ADS5292IPFPR | ADS5292IPFPT | ADS5294IPFPR | ADS5292IPFP |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active |
| Number of Bits | 12 | 12 | 14 | 12 |
| Sampling Rate (Per Second) | 80M | 80M | 80M | 80M |
| Number of Inputs | 8 | 8 | 8 | 8 |
| Input Type | Differential | Differential | Differential | Differential |
| Data Interface | LVDS - Serial | LVDS - Serial | LVDS - Serial | LVDS - Serial |
| Configuration | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC |
| Ratio - S/H:ADC | 1:1 | 1:1 | 1:1 | 1:1 |
| Number of A/D Converters | 8 | 8 | 8 | 8 |
| Architecture | Pipelined | Pipelined | Pipelined | Pipelined |
| Reference Type | External, Internal | External, Internal | External, Internal | External, Internal |
| Voltage - Supply, Analog | 1.7V ~ 1.9V | 1.7V ~ 1.9V | 1.7V ~ 1.9V | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V | 1.7V ~ 1.9V | 1.7V ~ 1.9V | 1.7V ~ 1.9V |
| Features | Simultaneous Sampling | Simultaneous Sampling | Simultaneous Sampling | Simultaneous Sampling |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 80-TQFP Exposed Pad | 80-TQFP Exposed Pad | 80-TQFP Exposed Pad | 80-TQFP Exposed Pad |
| Supplier Device Package | 80-HTQFP (12x12) | 80-HTQFP (12x12) | 80-HTQFP (12x12) | 80-HTQFP (12x12) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
