Please send RFQ , we will respond immediately.

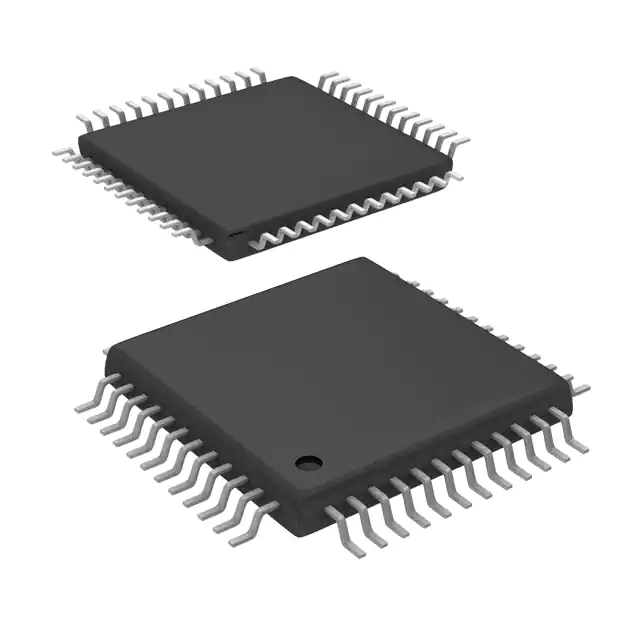

| Part Number | ADS5203IPFB | ADS5204IPFB | ADS5203IPFBR | ADS5103IPFB |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Number of Bits | 10 | 10 | 10 | 10 |
| Sampling Rate (Per Second) | 40M | 40M | 40M | 40M |
| Number of Inputs | 2 | 2 | 2 | 1 |
| Input Type | Differential, Single Ended | Differential, Single Ended | Differential, Single Ended | Differential |
| Data Interface | Parallel | Parallel | Parallel | Parallel |
| Configuration | S/H-ADC | PGA-S/H-ADC | S/H-ADC | S/H-ADC |
| Ratio - S/H:ADC | 1:1 | 1:1 | 1:1 | 1:1 |
| Number of A/D Converters | 2 | 2 | 2 | 1 |
| Architecture | Pipelined | Pipelined | Pipelined | Pipelined |
| Reference Type | External, Internal | External, Internal | External, Internal | External, Internal |
| Voltage - Supply, Analog | 3V ~ 3.6V | 0V ~ 3.6V | 3V ~ 3.6V | 1.65V ~ 2V |
| Voltage - Supply, Digital | 3V ~ 3.6V | 3.3V | 3V ~ 3.6V | 1.65V ~ 2V |
| Features | Simultaneous Sampling | PGA, Simultaneous Sampling | Simultaneous Sampling | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 48-TQFP | 48-TQFP | 48-TQFP | 48-TQFP |
| Supplier Device Package | 48-TQFP (7x7) | 48-TQFP (7x7) | 48-TQFP (7x7) | 48-TQFP (7x7) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
