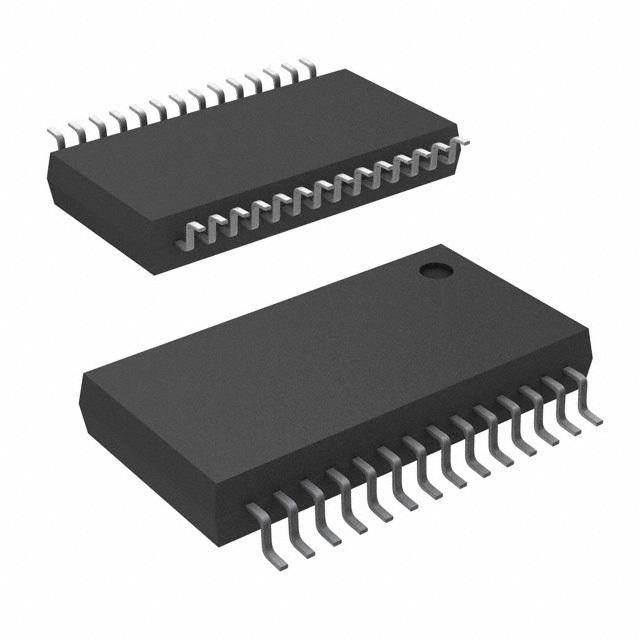

| Part Number | ADS1241E/1K | ADS1211E/1K | ADS1240E/1K |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active |
| Number of Bits | 24 | 24 | 24 |
| Sampling Rate (Per Second) | 15 | 16k | 15 |
| Number of Inputs | 8 | 4 | 4 |
| Input Type | Differential, Single Ended | Differential | Differential, Single Ended |
| Data Interface | SPI | SPI | SPI |
| Configuration | MUX-PGA-ADC | MUX-PGA-ADC | MUX-PGA-ADC |
| Ratio - S/H:ADC | - | - | - |
| Number of A/D Converters | 1 | 1 | 1 |
| Architecture | Sigma-Delta | Sigma-Delta | Sigma-Delta |
| Reference Type | External | External, Internal | External |
| Voltage - Supply, Analog | 2.7V ~ 3.3V, 5V | 5V | 2.7V ~ 3.3V, 5V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V | 5V | 2.7V ~ 5.25V |
| Features | PGA | PGA | PGA |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) | 28-SSOP (0.209", 5.30mm Width) | 24-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 28-SSOP | 28-SSOP | 24-SSOP |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
