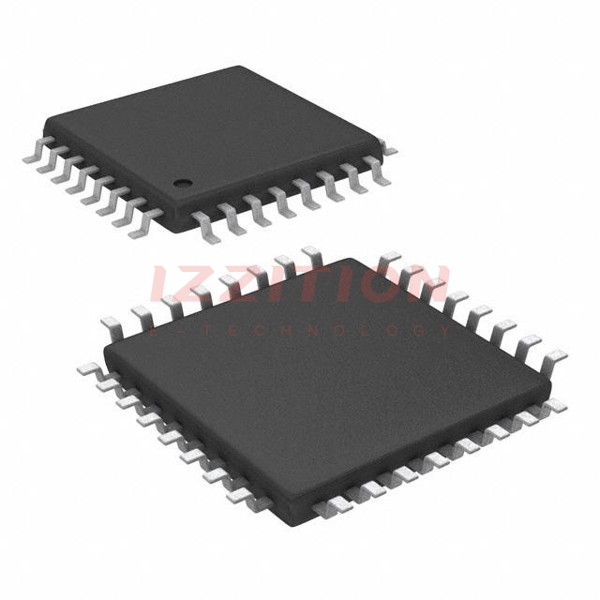

| Part Number | ADS114S08IPBSR | ADS114S06IPBSR | ADS114S08BIPBSR | ADS114S08IPBS |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active |
| Number of Bits | 16 | - | 16 | 16 |
| Sampling Rate (Per Second) | 4k | - | 4k | 4k |
| Number of Inputs | 12 | - | 12 | 12 |
| Input Type | Differential, Pseudo-Differential, Single Ended | - | Differential, Pseudo-Differential, Single Ended | Differential, Pseudo-Differential, Single Ended |
| Data Interface | SPI | - | SPI | SPI |
| Configuration | MUX-PGA-ADC | - | MUX-PGA-ADC | MUX-PGA-ADC |
| Ratio - S/H:ADC | - | - | - | - |
| Number of A/D Converters | 1 | - | 1 | 1 |
| Architecture | Sigma-Delta | - | Sigma-Delta | Sigma-Delta |
| Reference Type | External, Internal | - | External, Internal | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.25V | - | ±2.5V, 2.7V ~ 5.25V | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V | - | 2.7V ~ 3.6V | 2.7V ~ 3.6V |
| Features | PGA, Temperature Sensor | - | PGA, Temperature Sensor | PGA, Temperature Sensor |
| Operating Temperature | -50°C ~ 125°C | - | -40°C ~ 125°C | -50°C ~ 125°C |
| Package / Case | 32-TQFP | 32-TQFP | 32-TQFP | 32-TQFP |
| Supplier Device Package | 32-TQFP (5x5) | 32-TQFP (5x5) | 32-TQFP (5x5) | 32-TQFP (5x5) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
