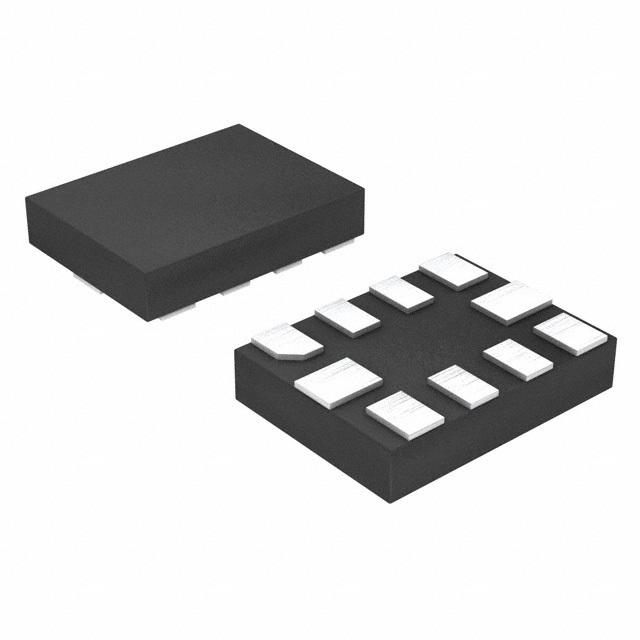

| Part Number | ADS1114IRUGT | ADS1115IRUGT | ADS1118IRUGT | ADS1014IRUGT | ADS1113IRUGT | ADS1114IRUGR |
|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active | Active |
| Number of Bits | 16 | 16 | 16 | 12 | 16 | 16 |
| Sampling Rate (Per Second) | 860 | 860 | 860 | 3.3k | 860 | 860 |
| Number of Inputs | 1, 2 | 2 | 2, 4 | 1, 2 | 1 | 1, 2 |
| Input Type | Differential, Single Ended | Differential, Single Ended | Differential, Single Ended | Differential, Single Ended | Differential | Differential, Single Ended |
| Data Interface | I²C | I²C | SPI | I²C | I²C | I²C |
| Configuration | PGA-ADC | MUX-PGA-ADC | MUX-PGA-ADC | MUX-PGA-ADC | ADC | PGA-ADC |
| Ratio - S/H:ADC | - | - | - | - | - | - |
| Number of A/D Converters | 1 | 1 | 1 | 1 | 1 | 1 |
| Architecture | Sigma-Delta | Sigma-Delta | Sigma-Delta | Sigma-Delta | Sigma-Delta | Sigma-Delta |
| Reference Type | Internal | Internal | Internal | Internal | Internal | Internal |
| Voltage - Supply, Analog | 2V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V |
| Voltage - Supply, Digital | 2V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V |
| Features | PGA, Selectable Address | PGA, Selectable Address | PGA, Temperature Sensor | PGA, Selectable Address | Selectable Address | PGA, Selectable Address |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Package / Case | 10-XFQFN | 10-XFQFN | 10-XFQFN | 10-XFQFN | 10-XFQFN | 10-XFQFN |
| Supplier Device Package | 10-X2QFN (2x1.5) | 10-X2QFN (2x1.5) | 10-X2QFN (2x1.5) | 10-X2QFN (2x1.5) | 10-X2QFN (2x1.5) | 10-X2QFN (2x1.5) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
