| Part Number | ADC12SJ800AAVQ1 | ADC12SJ800AAVTQ1 | ADC12DJ800AAVQ1 | ADC12QJ800AAVQ1 |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active |
| Number of Bits | 12 | 12 | 12 | 12 |
| Sampling Rate (Per Second) | 800M | 800M | 800M | 800M |
| Number of Inputs | 8 | 8 | 8 | 8 |
| Input Type | Differential | Differential | Differential | Differential |
| Data Interface | JESD204B Serial | JESD204B | JESD204B Serial | JESD204B Serial |
| Configuration | ADC | ADC | ADC | ADC |
| Ratio - S/H:ADC | 0:4 | 0:4 | 0:4 | 0:4 |
| Number of A/D Converters | 4 | 4 | 4 | 4 |
| Architecture | SAR | SAR | SAR | SAR |
| Reference Type | External | External | External | External |
| Voltage - Supply, Analog | 1.05V ~ 1.15V, 1.8V ~ 2V | 1.05V ~ 1.15V, 1.8V ~ 2V | 1.05V ~ 1.15V, 1.8V ~ 2V | 1.05V ~ 1.15V, 1.8V ~ 2V |
| Voltage - Supply, Digital | 1.05V ~ 1.15V | 1.05V ~ 1.15V | 1.05V ~ 1.15V | 1.05V ~ 1.15V |
| Features | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |

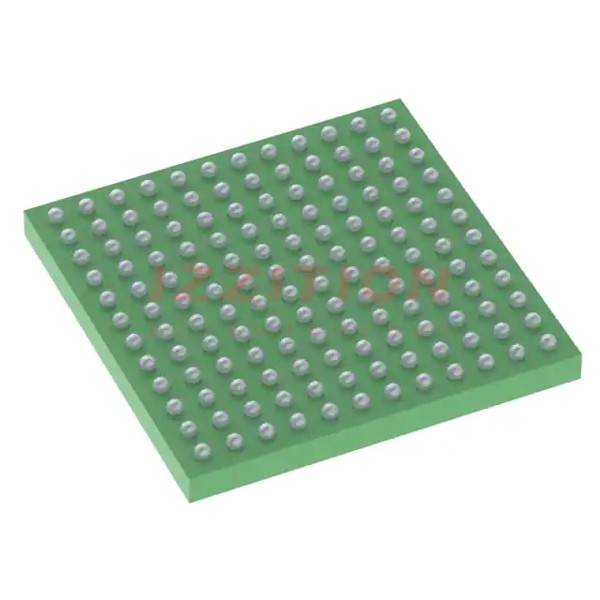

| Package / Case | 144-FBGA, FCBGA | 144-FBGA, FCBGA | 144-FBGA, FCBGA | 144-FBGA, FCBGA |
| Supplier Device Package | 144-FCBGA (10x10) | 144-FCBGA (10x10) | 144-FCBGA (10x10) | 144-FCBGA (10x10) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
