| Part Number | ADC12QJ1600AAVQ1 | ADC12SJ1600AAVQ1 | ADC12QJ1600AAVTQ1 | ADC12DJ1600AAVQ1 |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active |
| Number of Bits | 12 | 12 | 12 | 12 |
| Sampling Rate (Per Second) | 1.6G | 1.6G | 1.6G | 1.6G |
| Number of Inputs | 4 | 1 | 4 | 2 |
| Input Type | Differential, Single Ended | Differential, Single Ended | Differential, Single Ended | Differential, Single Ended |
| Data Interface | SPI | SPI | JESD204C, SPI | SPI |
| Configuration | ADC | ADC | ADC | ADC |
| Ratio - S/H:ADC | 0:4 | 0:4 | 0:4 | 0:4 |
| Number of A/D Converters | 4 | 4 | 4 | 4 |
| Architecture | Flash, Pipelined, SAR | Flash, Pipelined, SAR | Flash, Pipelined, SAR | Flash, Pipelined, SAR |
| Reference Type | External, Internal | External, Internal | External, Internal | External, Internal |
| Voltage - Supply, Analog | 1.05V ~ 1.15V, 1.8V ~ 2V | 1.05V ~ 1.15V, 1.8V ~ 2V | 1.05V ~ 1.15V, 1.8V ~ 2V | 1.05V ~ 1.15V, 1.8V ~ 2V |
| Voltage - Supply, Digital | 1.05V ~ 1.15V | 1.05V ~ 1.15V | 1.05V ~ 1.15V | 1.05V ~ 1.15V |
| Features | Temperature Sensor | Temperature Sensor | Temperature Sensor | Temperature Sensor |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |

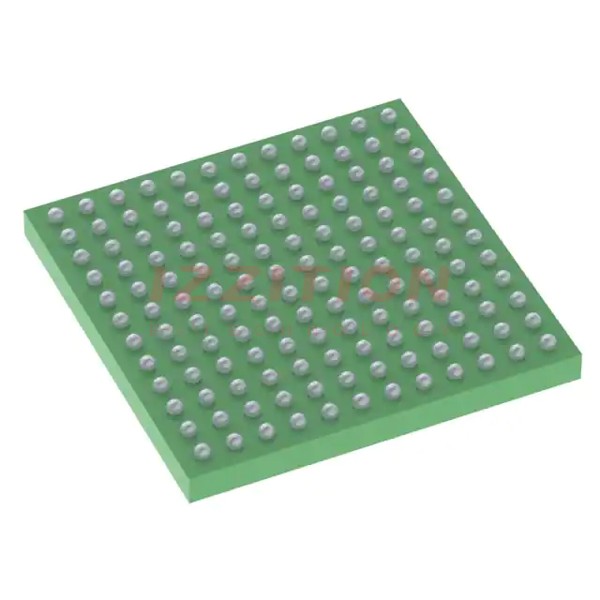

| Package / Case | 144-FBGA, FCBGA | 144-FBGA, FCBGA | 144-FBGA, FCBGA | 144-FBGA, FCBGA |
| Supplier Device Package | 144-FCBGA (10x10) | 144-FCBGA (10x10) | 144-FCBGA (10x10) | 144-FCBGA (10x10) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
