Please send RFQ , we will respond immediately.
| Part Number | ADC09SJ1300AAVT | ADC09DJ1300AAVT | ADC09QJ1300AAVT | ADC09SJ1300AAV |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active |
| Number of Bits | 9 | 9 | 9 | 9 |
| Sampling Rate (Per Second) | 1.3G | 1.3G | 1.3G | 1.3G |
| Number of Inputs | 1 | 2 | 4 | 1 |
| Input Type | Differential | Differential | Differential | Differential |
| Data Interface | JESD204C, Serial | JESD204C, Serial | JESD204C, Serial | JESD204C, Serial |
| Configuration | ADC | ADC | ADC | ADC |
| Ratio - S/H:ADC | 0:1 | 0:2 | 0:4 | - |
| Number of A/D Converters | 1 | 2 | 4 | 1 |
| Architecture | Pipelined, SAR | Pipelined, SAR | Pipelined, SAR | Pipelined, SAR |
| Reference Type | - | - | - | - |
| Voltage - Supply, Analog | 1.05V ~ 1.15V, 1.8V ~ 2V | 1.05V ~ 1.15V, 1.8V ~ 2V | 1.05V ~ 1.15V, 1.8V ~ 2V | 1.05V ~ 1.15V, 1.8V ~ 2V |
| Voltage - Supply, Digital | 1.05V ~ 1.15V | 1.05V ~ 1.15V | 1.05V ~ 1.15V | 1.05V ~ 1.15V |
| Features | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |

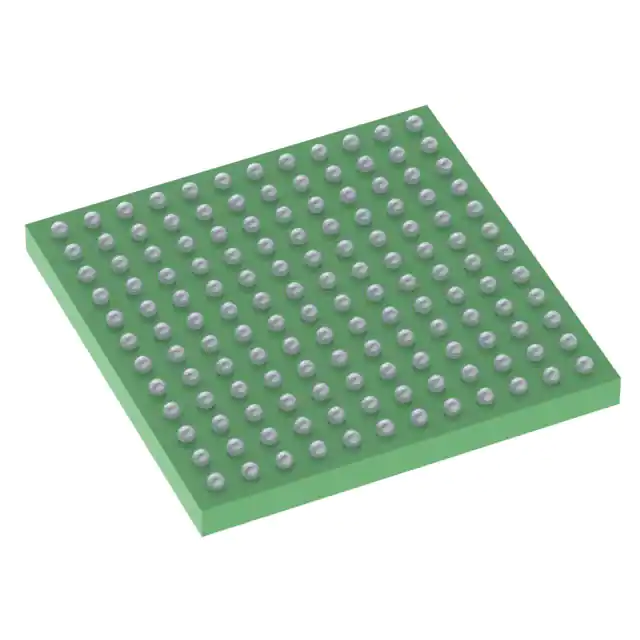

| Package / Case | 144-FBGA, FCBGA | 144-FBGA, FCBGA | 144-FBGA, FCBGA | 144-FBGA, FCBGA |
| Supplier Device Package | 144-FCBGA (10x10) | 144-FCBGA (10x10) | 144-FCBGA (10x10) | 144-FCBGA (10x10) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
