| Part Number | ADC0809CCV/NOPB | ADC0809CCVX/NOPB | ADC0808CCV/NOPB | ADC0809CCN/NOPB |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Obsolete |
| Number of Bits | 8 | 8 | 8 | 8 |
| Sampling Rate (Per Second) | 10k | 10k | 10k | 10k |
| Number of Inputs | 8 | 8 | 8 | 8 |
| Input Type | Single Ended | Single Ended | Single Ended | Single Ended |
| Data Interface | Parallel | Parallel | Parallel | Parallel |
| Configuration | MUX-S/H-ADC | MUX-S/H-ADC | MUX-S/H-ADC | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 | 1:1 | 1:1 | 1:1 |
| Number of A/D Converters | 1 | 1 | 1 | 1 |
| Architecture | SAR | SAR | SAR | SAR |
| Reference Type | External | External | External | External |
| Voltage - Supply, Analog | 4.5V ~ 6.5V | 4.5V ~ 6.5V | 4.5V ~ 6.5V | 4.5V ~ 6.5V |
| Voltage - Supply, Digital | 4.5V ~ 6.5V | 4.5V ~ 6.5V | 4.5V ~ 6.5V | 4.5V ~ 6.5V |
| Features | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |

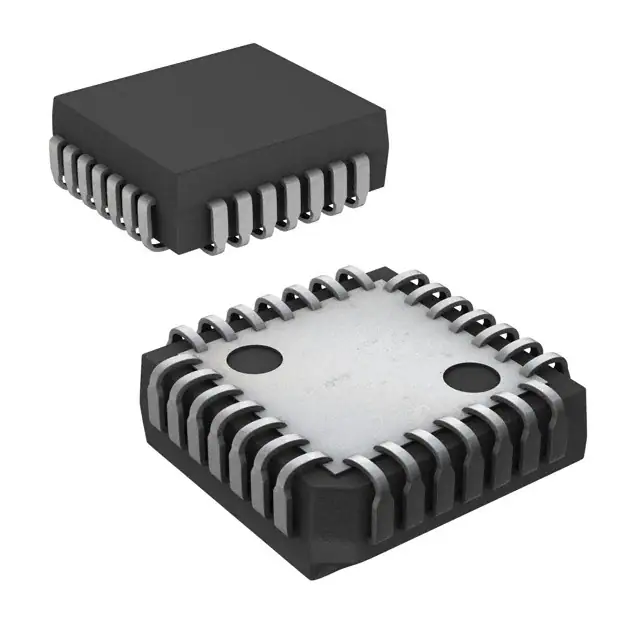

| Package / Case | 28-LCC (J-Lead) | 28-LCC (J-Lead) | 28-LCC (J-Lead) | 28-DIP (0.600", 15.24mm) |
| Supplier Device Package | 28-PLCC (11.51x11.51) | 28-PLCC (11.51x11.51) | 28-PLCC (11.51x11.51) | 28-DIP |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Through Hole |
