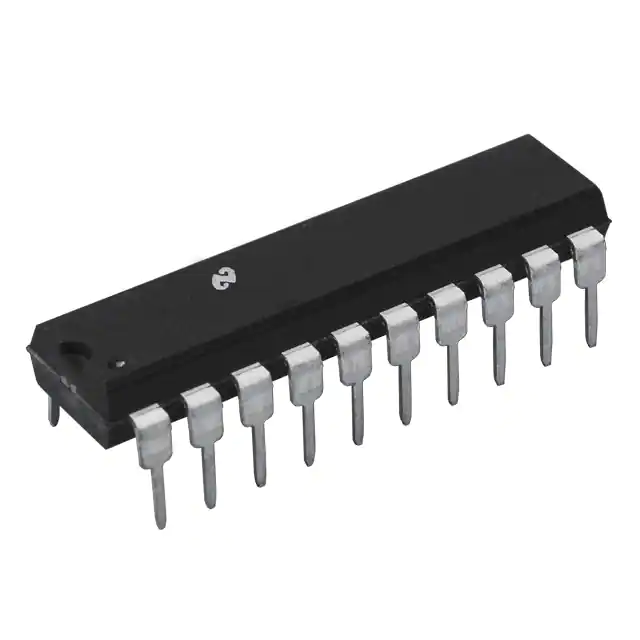

| Part Number | ADC0801LCN/NOPB | ADC0805LCN/NOPB | ADC0803LCN/NOPB | ADC0804LCN/NOPB | ADC0802LCN/NOPB |
|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | National Semiconductor | National Semiconductor | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Obsolete | Active | Obsolete | Obsolete |
| Number of Bits | 8 | 8 | 8 | 8 | 8 |
| Sampling Rate (Per Second) | 10k | 10k | - | 10k | 10k |
| Number of Inputs | 1 | 1 | 1 | 1 | 1 |
| Input Type | Differential | Differential | Differential | Differential | Differential |
| Data Interface | Parallel | Parallel | Parallel | Parallel | Parallel |
| Configuration | ADC | ADC | ADC | ADC | ADC |
| Ratio - S/H:ADC | - | - | 0:1 | - | - |
| Number of A/D Converters | 1 | 1 | 1 | 1 | 1 |
| Architecture | SAR | SAR | SAR | SAR | SAR |
| Reference Type | External, Supply | External, Supply | External, Supply | External, Supply | External, Supply |
| Voltage - Supply, Analog | 4.5V ~ 6.3V | 4.5V ~ 6.3V | 4.5V ~ 5.5V | 4.5V ~ 6.3V | 4.5V ~ 6.3V |
| Voltage - Supply, Digital | 4.5V ~ 6.3V | 4.5V ~ 6.3V | 4.5V ~ 5.5V | 4.5V ~ 6.3V | 4.5V ~ 6.3V |
| Features | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | 0°C ~ 70°C | -40°C ~ 85°C |
| Package / Case | 20-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) |
| Supplier Device Package | 20-PDIP | 20-PDIP | 20-PDIP | 20-PDIP | 20-PDIP |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
