TE Connectivity Potter & Brumfield Relays-XT4S4LC4 - Power Relays, Over 2 Amps Product Specifications and Latest Quotes

Mounting Type:	DIN Rail
Coil Voltage:	24VDC
Contact Form:	DPDT (2 Form C)
Contact Rating (Current):	8 A
Switching Voltage:	400VAC - Max
Coil Current:	16.7 mA
Coil Type:	Non Latching
Features:	Diode, Lighted Indicator, Socket Included
Termination Style:	Screw Terminal
Seal Rating:	-
Coil Insulation:	-
Must Operate Voltage:	16.8 VDC
Must Release Voltage:	2.4 VDC
Operate Time:	9 ms
Release Time:	6 ms
Operating Temperature:	-40°C ~ 70°C
Contact Material:	Silver Nickel (AgNi)
Relay Type:	General Purpose

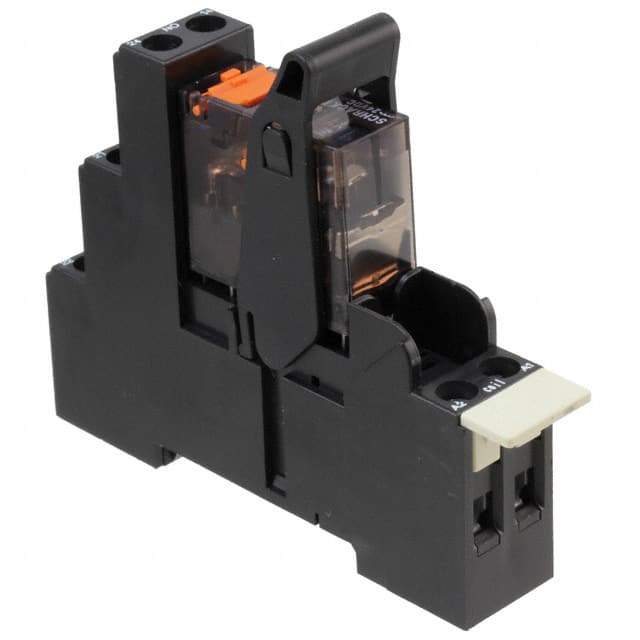

TE Connectivity Potter & Brumfield Relays XT4S4LC4
