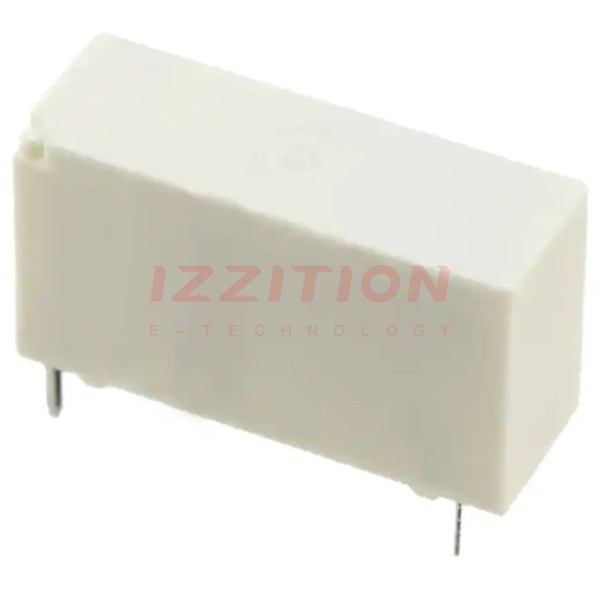

TE Connectivity Potter & Brumfield Relays-V23061B1002A601 - Power Relays, Over 2 Amps Product Specifications and Latest Quotes

Mounting Type:	Through Hole
Coil Voltage:	5VDC
Contact Form:	SPDT (1 Form C)
Contact Rating (Current):	8 A
Switching Voltage:	400VAC - Max
Coil Current:	42.4 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	PC Pin
Seal Rating:	Sealed - Fully
Coil Insulation:	Class A
Must Operate Voltage:	3.4 VDC
Must Release Voltage:	0.5 VDC
Operate Time:	10 ms
Release Time:	5 ms
Operating Temperature:	-40°C ~ 85°C
Contact Material:	Silver Cadmium Oxide (AgCdO), Gold (Au)
Relay Type:	General Purpose

TE Connectivity Potter & Brumfield Relays V23061B1002A601
