T9GS5L24-22

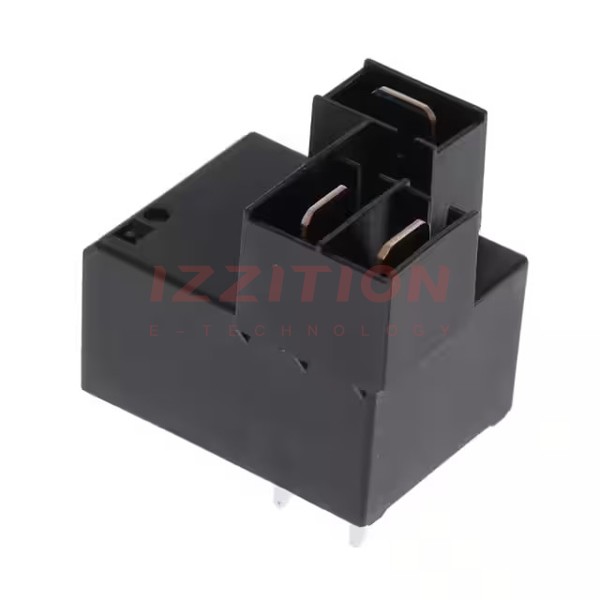

T9GS5L24-22 Image
×
Favorite
Compare
Add to RFQ
Share:
TE Connectivity Potter & Brumfield Relays T9GS5L24-22
Manufacturer No:
T9GS5L24-22
Manufacturer:
TE Connectivity Potter & Brumfield Relays
Package:
Bulk
Datasheet:
T9GS5L24-22 Datasheet
ECAD Model:
-
Description:
RELAY GEN PURPOSE SPDT 20A 22V
Delivery:
Payment:
Product Attributes
Mounting Type:
Through Hole
Coil Voltage:
22VDC
Contact Form:
SPDT (1 Form C)
Contact Rating (Current):
20 A
Switching Voltage:
480VAC - Max
Coil Current:
41 mA
Coil Type:
Non Latching
Features:
-
Termination Style:
PC Pin, Quick Connect - 0.250" (6.3mm)
Seal Rating:
Sealed - Fully
Coil Insulation:
Class F
Must Operate Voltage:
16.5 VDC
Must Release Voltage:
2.2 VDC
Operate Time:
15 ms
Release Time:
22 ms
Operating Temperature:
-40°C ~ 105°C
Contact Material:
Silver Tin Oxide (AgSnO)
Relay Type:
General Purpose
0
Remaining
View Similar
In Stock
UnitPrice:
$5.09
Quantity:
66
