Home
All Products
Relays
Power Relays, Over 2 Amps
T9GS2L24-15

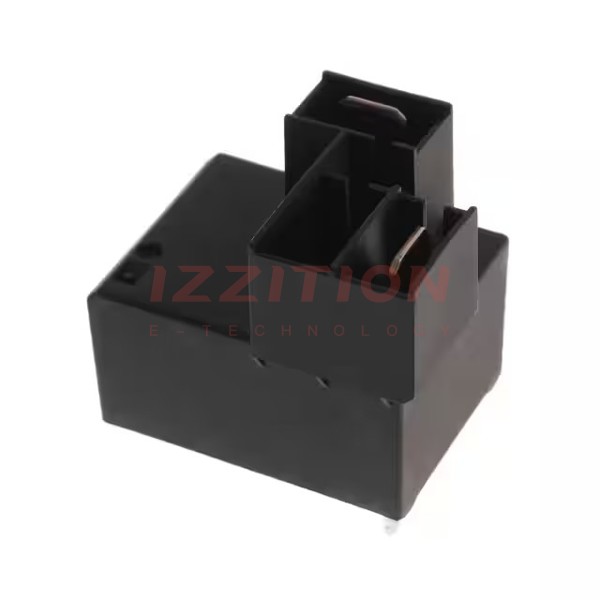

T9GS2L24-15 Image
×
Favorite
Compare
Add to RFQ
Share:
TE Connectivity Potter & Brumfield Relays T9GS2L24-15
Manufacturer No:
T9GS2L24-15
Manufacturer:
TE Connectivity Potter & Brumfield Relays
Package:
Bulk
Datasheet:
T9GS2L24-15 Datasheet
ECAD Model:
-
Description:
RELAY GEN PURPOSE SPST 20A 15V
Delivery:
Payment:
Product Attributes
Mounting Type:
Through Hole
Coil Voltage:
15VDC
Contact Form:
SPST-NC (1 Form B)
Contact Rating (Current):
20 A
Switching Voltage:
480VAC - Max
Coil Current:
60 mA
Coil Type:
Non Latching
Features:
-
Termination Style:
PC Pin, Quick Connect - 0.250" (6.3mm)
Seal Rating:
Sealed - Fully
Coil Insulation:
Class F
Must Operate Voltage:
11.25 VDC
Must Release Voltage:
1.5 VDC
Operate Time:
15 ms
Release Time:
22 ms
Operating Temperature:
-40°C ~ 105°C
Contact Material:
Silver Tin Oxide (AgSnO)
Relay Type:
General Purpose
0
Remaining
View Similar
In Stock
UnitPrice:
$4.65
Quantity:
145
Please send RFQ , we will respond immediately.
