TE Connectivity Potter & Brumfield Relays-T9ES5D14-12 - Power Relays, Over 2 Amps Product Specifications and Latest Quotes

Mounting Type:	Through Hole
Coil Voltage:	12VDC
Contact Form:	SPDT (1 Form C)
Contact Rating (Current):	20 A
Switching Voltage:	250VAC - Max
Coil Current:	83.3 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	PC Pin
Seal Rating:	Sealed - Fully
Coil Insulation:	Class F
Must Operate Voltage:	9 VDC
Must Release Voltage:	1.2 VDC
Operate Time:	15 ms
Release Time:	15 ms
Operating Temperature:	-40°C ~ 85°C
Contact Material:	Silver Tin Oxide Indium Oxide (AgSnOInO)
Relay Type:	General Purpose

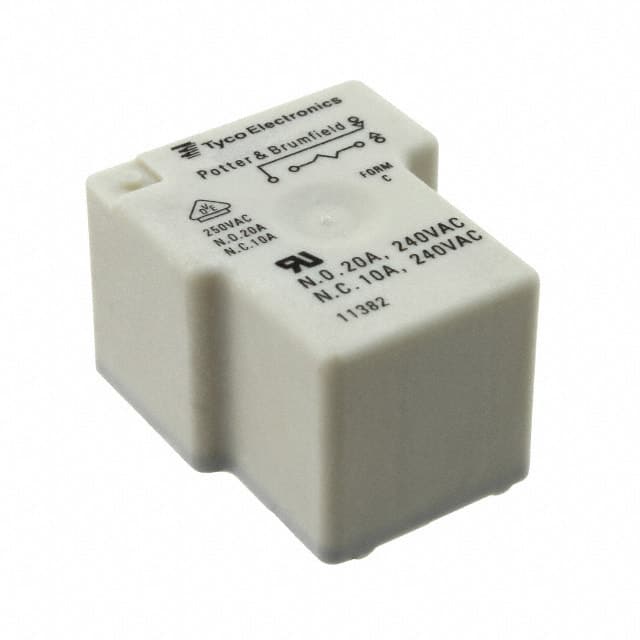

TE Connectivity Potter & Brumfield Relays T9ES5D14-12
