TE Connectivity Potter & Brumfield Relays-T9CP5A54-120 - Power Relays, Over 2 Amps Product Specifications and Latest Quotes

Mounting Type:	Chassis Mount
Coil Voltage:	120VAC
Contact Form:	SPDT (1 Form C)
Contact Rating (Current):	20 A
Switching Voltage:	277VAC
Coil Current:	-
Coil Type:	Non Latching
Features:	-
Termination Style:	Quick Connect - 0.187"/0.250"
Seal Rating:	-
Coil Insulation:	Class F
Must Operate Voltage:	96 VAC
Must Release Voltage:	12 VAC
Operate Time:	15 ms
Release Time:	15 ms
Operating Temperature:	-40°C ~ 85°C
Contact Material:	Silver Tin Oxide Indium Oxide (AgSnOInO)
Relay Type:	General Purpose

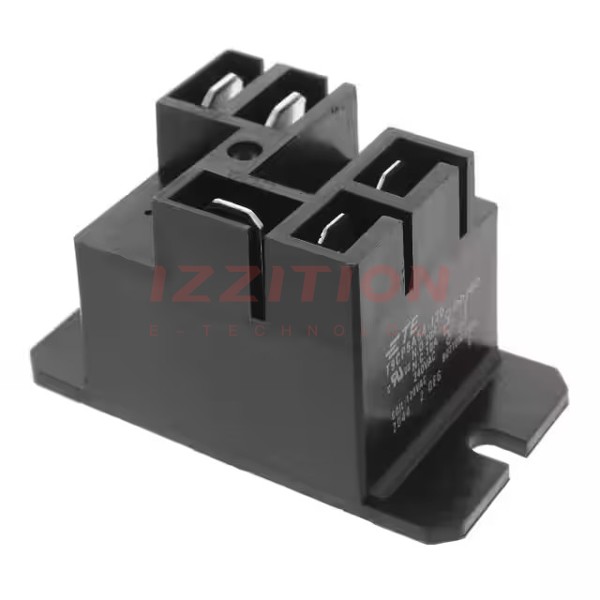

TE Connectivity Potter & Brumfield Relays T9CP5A54-120
