TE Connectivity Potter & Brumfield Relays-T9CP1A54-240 - Power Relays, Over 2 Amps Product Specifications and Latest Quotes

Mounting Type:	Chassis Mount
Coil Voltage:	240VAC
Contact Form:	SPST-NO (1 Form A)
Contact Rating (Current):	30 A
Switching Voltage:	250VAC - Max
Coil Current:	-
Coil Type:	Non Latching
Features:	-
Termination Style:	Quick Connect - 0.187"/0.250"
Seal Rating:	-
Coil Insulation:	Class F
Must Operate Voltage:	192 VAC
Must Release Voltage:	24 VAC
Operate Time:	15 ms
Release Time:	15 ms
Operating Temperature:	-40°C ~ 70°C
Contact Material:	Silver Tin Oxide Indium Oxide (AgSnOInO)
Relay Type:	General Purpose

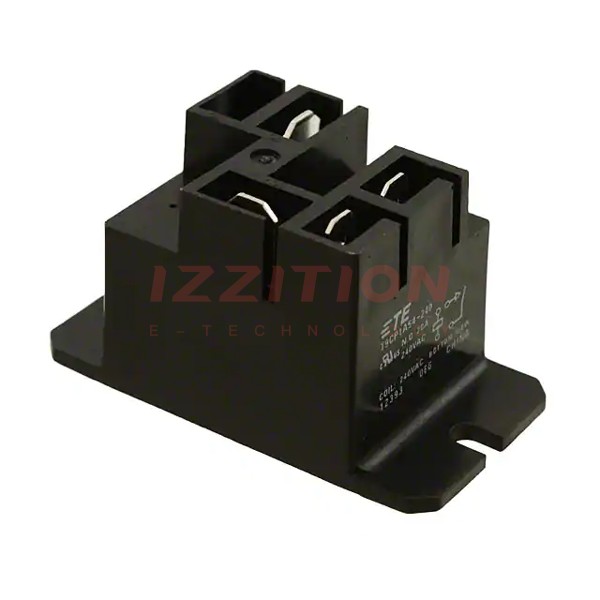

TE Connectivity Potter & Brumfield Relays T9CP1A54-240
