T9AV1D12-22
  • Share:

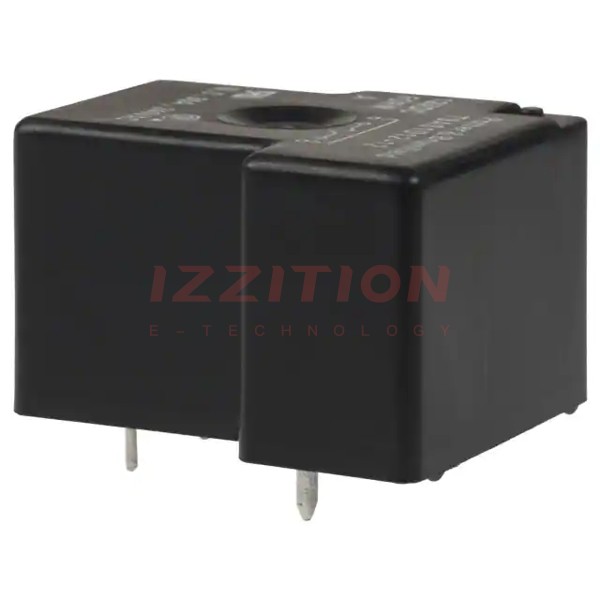

TE Connectivity Potter & Brumfield Relays T9AV1D12-22

Manufacturer No:
T9AV1D12-22
Manufacturer:
TE Connectivity Potter & Brumfield Relays
Package:
Bulk
Datasheet:
T9AV1D12-22 Datasheet
ECAD Model:
-
Description:
RELAY GEN PURPOSE SPST 30A 22V
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Mounting Type:Through Hole
Coil Voltage:22VDC
Contact Form:SPST-NO (1 Form A)
Contact Rating (Current):30 A
Switching Voltage:277VAC - Max
Coil Current:45.5 mA
Coil Type:Non Latching
Features:-
Termination Style:PC Pin
Seal Rating:Sealed - Flux Protection
Coil Insulation:Class F
Must Operate Voltage:16.5 VDC
Must Release Voltage:2.2 VDC
Operate Time:15 ms
Release Time:15 ms
Operating Temperature:-55°C ~ 85°C
Contact Material:Silver Cadmium Oxide (AgCdO)
Relay Type:General Purpose
0 Remaining View Similar

In Stock

$6.33
153

Please send RFQ , we will respond immediately.
