Home
All Products
Relays
Power Relays, Over 2 Amps
T9AS5D22-12

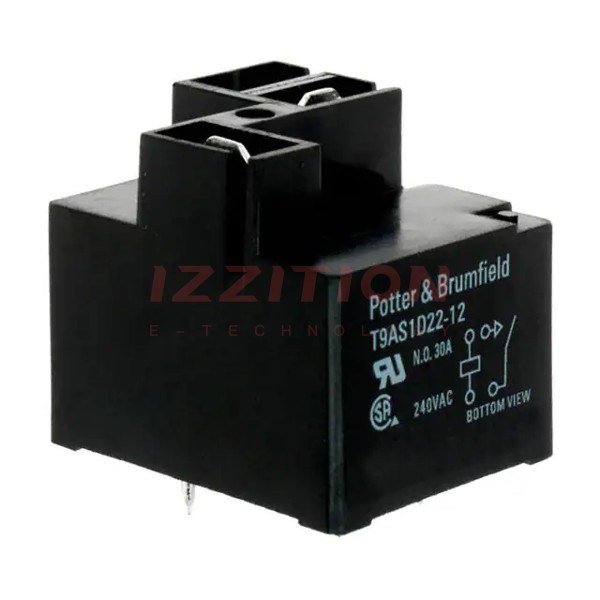

T9AS5D22-12 Image
×
Favorite
Compare
Add to RFQ
Share:
TE Connectivity Potter & Brumfield Relays T9AS5D22-12
Manufacturer No:
T9AS5D22-12
Manufacturer:
TE Connectivity Potter & Brumfield Relays
Package:
Bulk
Datasheet:
T9AS5D22-12 Datasheet
ECAD Model:
-
Description:
RELAY GEN PURPOSE SPDT 20A 12V
Delivery:
Payment:
Product Attributes
Mounting Type:
Through Hole
Coil Voltage:
12VDC
Contact Form:
SPDT (1 Form C)
Contact Rating (Current):
20 A
Switching Voltage:
277VAC - Max
Coil Current:
83 mA
Coil Type:
Non Latching
Features:
-
Termination Style:
PC Pin, Quick Connect - 0.250" (6.3mm)
Seal Rating:
Sealed - Fully
Coil Insulation:
Class F
Must Operate Voltage:
9 VDC
Must Release Voltage:
1.2 VDC
Operate Time:
15 ms
Release Time:
15 ms
Operating Temperature:
-55°C ~ 85°C
Contact Material:
Silver Cadmium Oxide (AgCdO)
Relay Type:
General Purpose
0
Remaining
View Similar
In Stock
UnitPrice:
$7.80
Quantity:
21
Please send RFQ , we will respond immediately.
