Home
All Products
Relays
Power Relays, Over 2 Amps
T9AP1D52-22

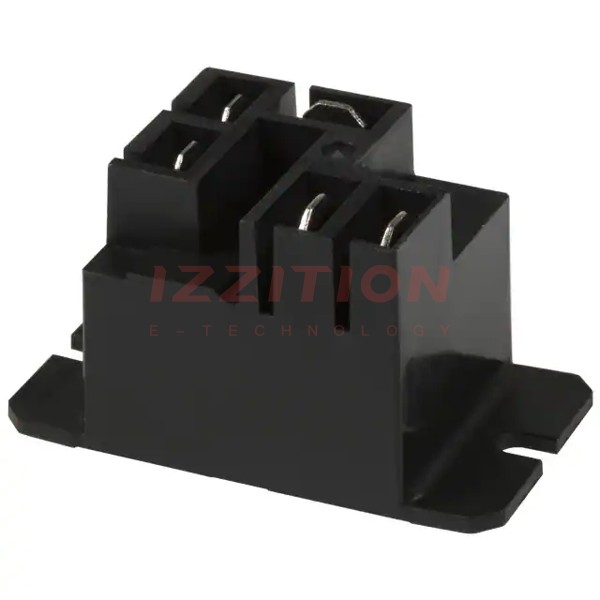

T9AP1D52-22 Image
×
Favorite
Compare
Add to RFQ
Share:
TE Connectivity Potter & Brumfield Relays T9AP1D52-22
Manufacturer No:
T9AP1D52-22
Manufacturer:
TE Connectivity Potter & Brumfield Relays
Package:
Bulk
Datasheet:
T9AP1D52-22 Datasheet
ECAD Model:
-
Description:
RELAY GEN PURPOSE SPST 30A 22V
Delivery:
Payment:
Product Attributes
Mounting Type:
Chassis Mount
Coil Voltage:
22VDC
Contact Form:
SPST-NO (1 Form A)
Contact Rating (Current):
30 A
Switching Voltage:
277VAC - Max
Coil Current:
45.5 mA
Coil Type:
Non Latching
Features:
-
Termination Style:
Quick Connect - 0.187"/0.250"
Seal Rating:
-
Coil Insulation:
Class F
Must Operate Voltage:
16.5 VDC
Must Release Voltage:
2.2 VDC
Operate Time:
15 ms
Release Time:
15 ms
Operating Temperature:
-55°C ~ 85°C
Contact Material:
Silver Cadmium Oxide (AgCdO)
Relay Type:
General Purpose
0
Remaining
View Similar
In Stock
UnitPrice:
$4.04
Quantity:
152
Please send RFQ , we will respond immediately.
