T9AP1D22-18-01

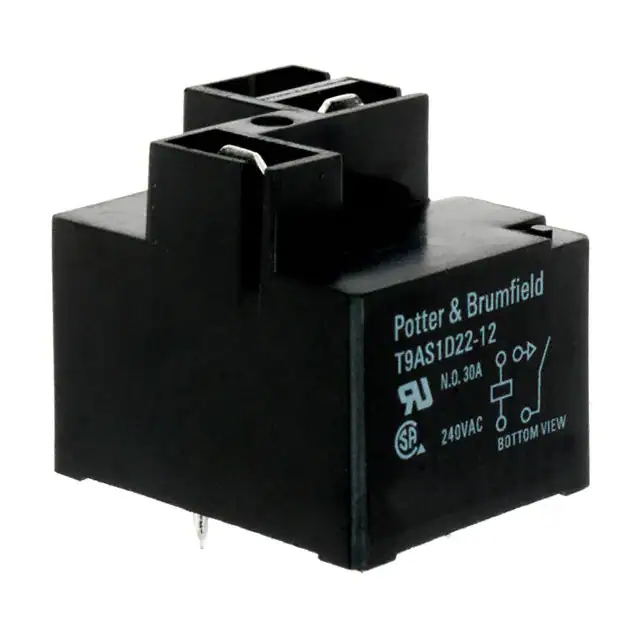

T9AP1D22-18-01 Image
×
Favorite
Compare
Add to RFQ
Share:
TE Connectivity Potter & Brumfield Relays T9AP1D22-18-01
Manufacturer No:
T9AP1D22-18-01
Manufacturer:
TE Connectivity Potter & Brumfield Relays
Package:
Bulk
Datasheet:
T9AP1D22-18-01 Datasheet
ECAD Model:
-
Description:
RELAY GEN PURPOSE SPST 30A 18V
Delivery:
Payment:
Product Attributes
Mounting Type:
Through Hole
Coil Voltage:
18VDC
Contact Form:
SPST-NO (1 Form A)
Contact Rating (Current):
30 A
Switching Voltage:
277VAC - Max
Coil Current:
55.6 mA
Coil Type:
Non Latching
Features:
-
Termination Style:
PC Pin, Quick Connect - 0.250" (6.3mm)
Seal Rating:
-
Coil Insulation:
Class F
Must Operate Voltage:
13.5 VDC
Must Release Voltage:
1.8 VDC
Operate Time:
15 ms
Release Time:
15 ms
Operating Temperature:
-55°C ~ 85°C
Contact Material:
Silver Cadmium Oxide (AgCdO)
Relay Type:
General Purpose
0
Remaining
View Similar
In Stock
UnitPrice:
$3.96
Quantity:
171
