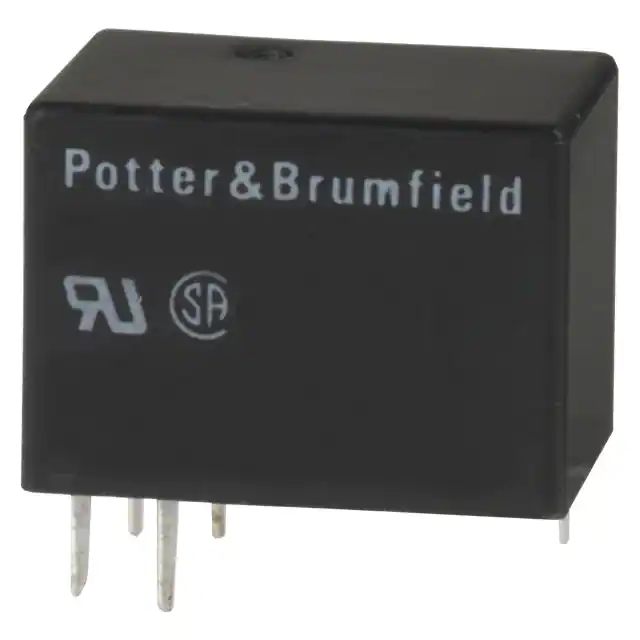

TE Connectivity Potter & Brumfield Relays-T81H5D312-12 - Signal Relays, Up to 2 Amps Product Specifications and Latest Quotes

Mounting Type:	Through Hole
Coil Voltage:	12VDC
Contact Form:	SPDT (1 Form C)
Contact Rating (Current):	1 A
Switching Voltage:	125VAC, 60VDC - Max
Coil Current:	17.1 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	PC Pin
Seal Rating:	-
Coil Insulation:	-
Must Operate Voltage:	8.4 VDC
Must Release Voltage:	0.6 VDC
Operate Time:	10 ms
Release Time:	7 ms
Operating Temperature:	-30°C ~ 70°C
Contact Material:	Silver Palladium (AgPd), Gold (Au)
Relay Type:	Telecom

TE Connectivity Potter & Brumfield Relays T81H5D312-12
