TE Connectivity Potter & Brumfield Relays-SDT-SS-112DM,000 - Power Relays, Over 2 Amps Product Specifications and Latest Quotes

Mounting Type:	Through Hole
Coil Voltage:	12VDC
Contact Form:	SPST-NO (1 Form A)
Contact Rating (Current):	10 A
Switching Voltage:	250VAC, 24VDC - Max
Coil Current:	44.4 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	PC Pin
Seal Rating:	Sealed - Flux Protection
Coil Insulation:	-
Must Operate Voltage:	9 VDC
Must Release Voltage:	1.2 VDC
Operate Time:	15 ms
Release Time:	8 ms
Operating Temperature:	-30°C ~ 60°C
Contact Material:	Silver Tin Oxide Indium Oxide (AgSnOInO)
Relay Type:	General Purpose

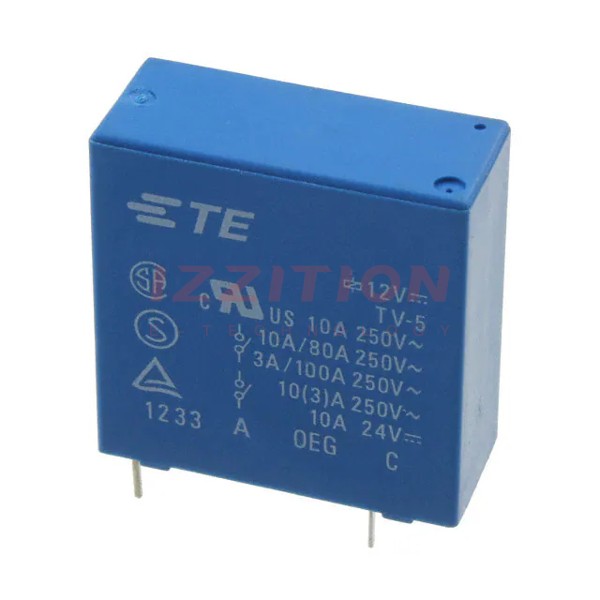

TE Connectivity Potter & Brumfield Relays SDT-SS-112DM,000
