S86R5A1B1D1-120

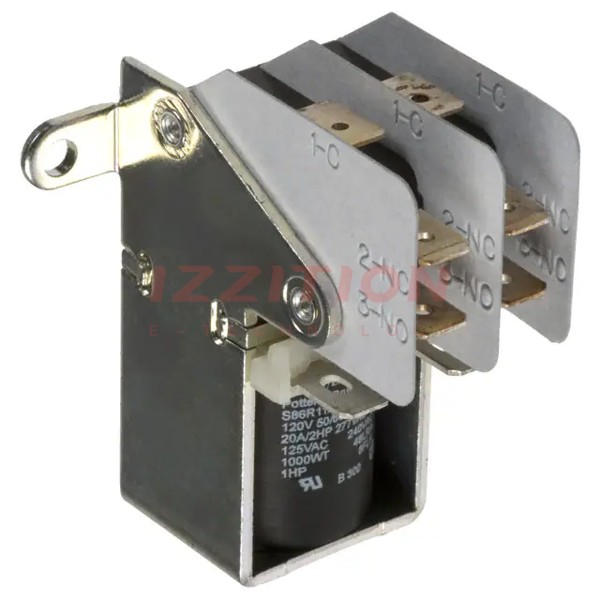

S86R5A1B1D1-120 Image
×
Favorite
Compare
Add to RFQ
Share:
TE Connectivity Potter & Brumfield Relays S86R5A1B1D1-120
Manufacturer No:
S86R5A1B1D1-120
Manufacturer:
TE Connectivity Potter & Brumfield Relays
Package:
Bulk
Datasheet:
S86R5A1B1D1-120 Datasheet
ECAD Model:
-
Description:
RELAY GEN PURPOSE SPDT 20A 120V
Delivery:
Payment:
Product Attributes
Mounting Type:
Chassis Mount
Coil Voltage:
120VAC
Contact Form:
SPDT (1 Form C)
Contact Rating (Current):
20 A
Switching Voltage:
277VAC - Max
Coil Current:
33 mA
Coil Type:
Non Latching
Features:
-
Termination Style:
Quick Connect - 0.250" (6.3mm)
Seal Rating:
-
Coil Insulation:
Class B
Must Operate Voltage:
102 VAC
Must Release Voltage:
-
Operate Time:
-
Release Time:
-
Operating Temperature:
-10°C ~ 65°C
Contact Material:
Silver Cadmium Oxide (AgCdO)
Relay Type:
General Purpose
0
Remaining
View Similar
In Stock
UnitPrice:
-
Quantity:
469
Please send RFQ , we will respond immediately.
