RZF1-1A4-L024

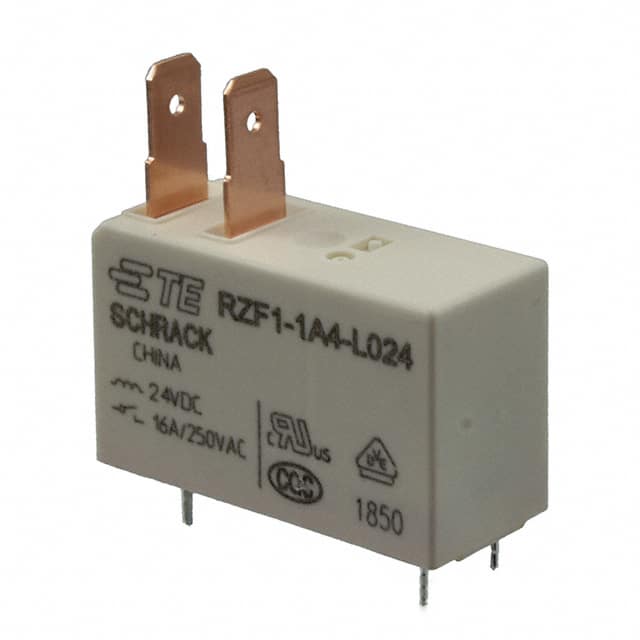

RZF1-1A4-L024 Image
×
Favorite
Compare
Add to RFQ
Share:
TE Connectivity Potter & Brumfield Relays RZF1-1A4-L024
Manufacturer No:
RZF1-1A4-L024
Manufacturer:
TE Connectivity Potter & Brumfield Relays
Package:
Tube
Datasheet:
RZF1-1A4-L024 Datasheet
ECAD Model:
-
Description:
RELAY GEN PURPOSE SPST 16A 24V
Delivery:
Payment:
Product Attributes
Mounting Type:
Through Hole
Coil Voltage:
24VDC
Contact Form:
SPST-NO (1 Form A)
Contact Rating (Current):
16 A
Switching Voltage:
400VAC - Max
Coil Current:
22.1 mA
Coil Type:
Non Latching
Features:
-
Termination Style:
PC Pin, Quick Connect - 0.187" (4.7mm)
Seal Rating:
Sealed - Flux Protection
Coil Insulation:
Class F
Must Operate Voltage:
16.8 VDC
Must Release Voltage:
2.4 VDC
Operate Time:
8 ms
Release Time:
6 ms
Operating Temperature:
-40°C ~ 85°C
Contact Material:
Silver Nickel (AgNi)
Relay Type:
General Purpose
0
Remaining
View Similar
In Stock
UnitPrice:
$3.06
Quantity:
51
Please send RFQ , we will respond immediately.
