RZF1-1A4-L009

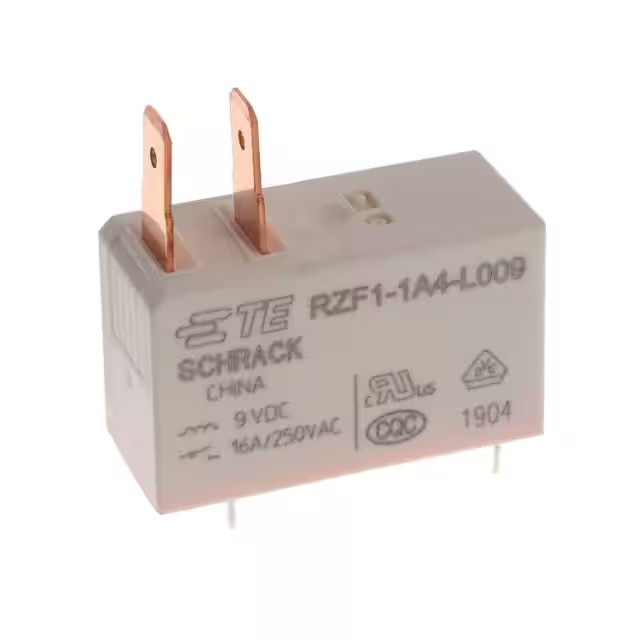

RZF1-1A4-L009 Image
×
Favorite
Compare
Add to RFQ
Share:
TE Connectivity Potter & Brumfield Relays RZF1-1A4-L009
Manufacturer No:
RZF1-1A4-L009
Manufacturer:
TE Connectivity Potter & Brumfield Relays
Package:
Tube
Datasheet:
RZF1-1A4-L009 Datasheet
ECAD Model:
-
Description:
RELAY GEN PURPOSE SPST 16A 9V
Delivery:
Payment:
Product Attributes
Mounting Type:
Through Hole
Coil Voltage:
9VDC
Contact Form:
SPST-NO (1 Form A)
Contact Rating (Current):
16 A
Switching Voltage:
400VAC - Max
Coil Current:
58.9 mA
Coil Type:
Non Latching
Features:
-
Termination Style:
PC Pin, Quick Connect - 0.187" (4.7mm)
Seal Rating:
Sealed - Flux Protection
Coil Insulation:
Class F
Must Operate Voltage:
6.3 VDC
Must Release Voltage:
0.9 VDC
Operate Time:
8 ms
Release Time:
6 ms
Operating Temperature:
-40°C ~ 85°C
Contact Material:
Silver Nickel (AgNi)
Relay Type:
General Purpose
0
Remaining
View Similar
In Stock
UnitPrice:
$2.78
