TE Connectivity Potter & Brumfield Relays-RTX3-1AT-C012 - Power Relays, Over 2 Amps Product Specifications and Latest Quotes

Mounting Type:	Through Hole
Coil Voltage:	12VDC
Contact Form:	SPST-NO (1 Form A)
Contact Rating (Current):	16 A
Switching Voltage:	250VAC - Nom
Coil Current:	79 mA
Coil Type:	Latching, Dual Coil
Features:	-
Termination Style:	PC Pin
Seal Rating:	-
Coil Insulation:	Class F
Must Operate Voltage:	9 VDC
Must Release Voltage:	-
Operate Time:	-
Release Time:	-
Operating Temperature:	-40°C ~ 70°C
Contact Material:	Silver Tin Oxide (AgSnO), Tungsten (W)
Relay Type:	General Purpose

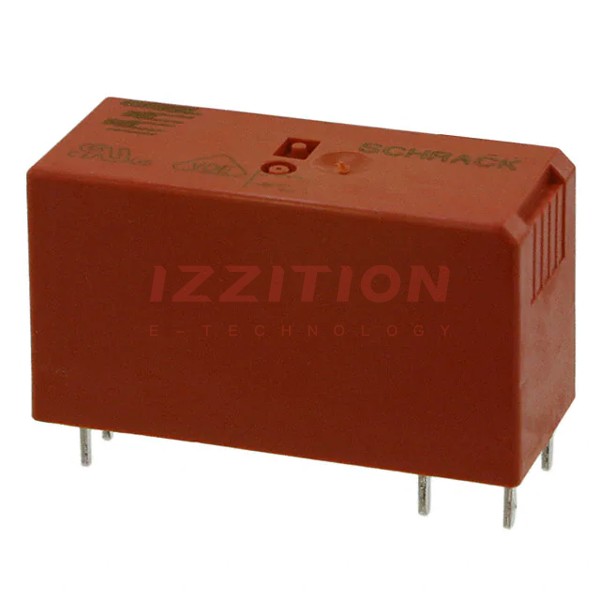

TE Connectivity Potter & Brumfield Relays RTX3-1AT-C012
