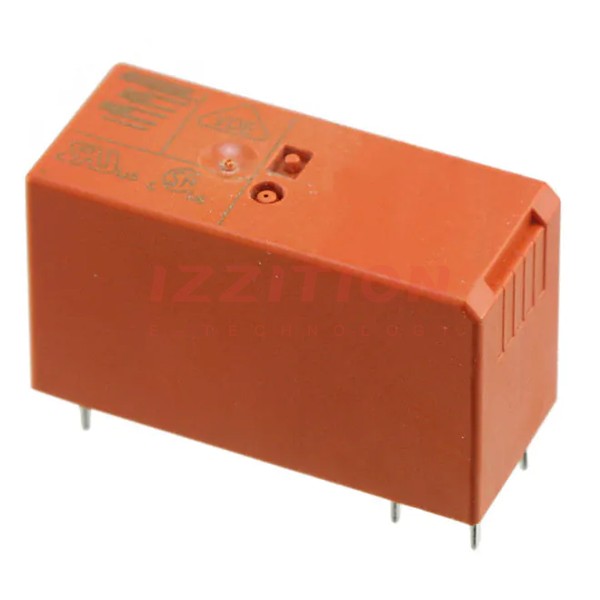

TE Connectivity Potter & Brumfield Relays-RTS3TA12 - Power Relays, Over 2 Amps Product Specifications and Latest Quotes

Mounting Type:	Through Hole
Coil Voltage:	12VDC
Contact Form:	SPST-NO (1 Form A)
Contact Rating (Current):	16 A
Switching Voltage:	400VAC - Max
Coil Current:	33.3 mA
Coil Type:	Latching, Single Coil
Features:	-
Termination Style:	PC Pin
Seal Rating:	Sealed - Flux Protection
Coil Insulation:	Class F
Must Operate Voltage:	8.4 VDC
Must Release Voltage:	-
Operate Time:	10 ms
Release Time:	10 ms
Operating Temperature:	-10°C ~ 85°C
Contact Material:	Silver Tin Oxide (AgSnO), Tungsten (W)
Relay Type:	General Purpose

TE Connectivity Potter & Brumfield Relays RTS3TA12
