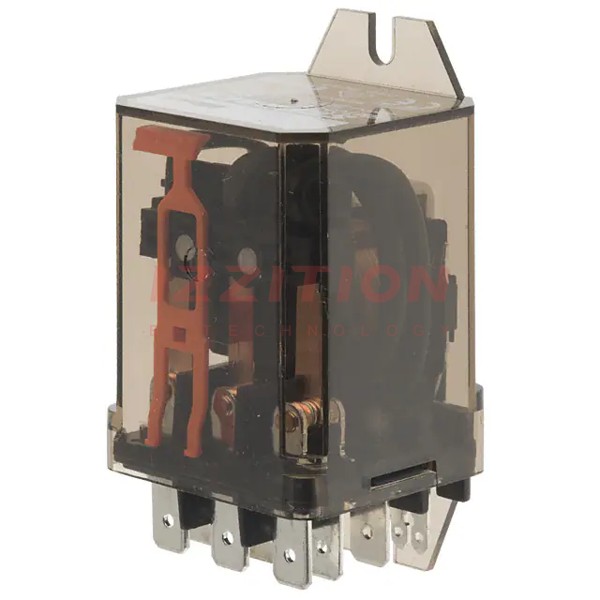

TE Connectivity Potter & Brumfield Relays-RM838012 - Power Relays, Over 2 Amps Product Specifications and Latest Quotes

Mounting Type:	DIN Rail
Coil Voltage:	12VDC
Contact Form:	DPDT (2 Form C)
Contact Rating (Current):	25 A
Switching Voltage:	400VAC - Max
Coil Current:	109 mA
Coil Type:	Non Latching
Features:	Mechanical Indicator, Test Button
Termination Style:	Quick Connect - 0.250" (6.3mm)
Seal Rating:	-
Coil Insulation:	-
Must Operate Voltage:	9 VDC
Must Release Voltage:	1.2 VDC
Operate Time:	15 ms
Release Time:	10 ms
Operating Temperature:	-45°C ~ 65°C
Contact Material:	Silver Cadmium Oxide (AgCdO)
Relay Type:	General Purpose

TE Connectivity Potter & Brumfield Relays RM838012
