TE Connectivity Potter & Brumfield Relays-RM835730 - Power Relays, Over 2 Amps Product Specifications and Latest Quotes

Mounting Type:	Chassis Mount
Coil Voltage:	230VAC
Contact Form:	DPDT (2 Form C)
Contact Rating (Current):	25 A
Switching Voltage:	400VAC - Max
Coil Current:	-
Coil Type:	Non Latching
Features:	Mechanical Indicator, Test Button
Termination Style:	Quick Connect - 0.250" (6.3mm)
Seal Rating:	-
Coil Insulation:	-
Must Operate Voltage:	184 VAC
Must Release Voltage:	69 VAC
Operate Time:	-
Release Time:	-
Operating Temperature:	-45°C ~ 40°C
Contact Material:	Silver Cadmium Oxide (AgCdO)
Relay Type:	General Purpose

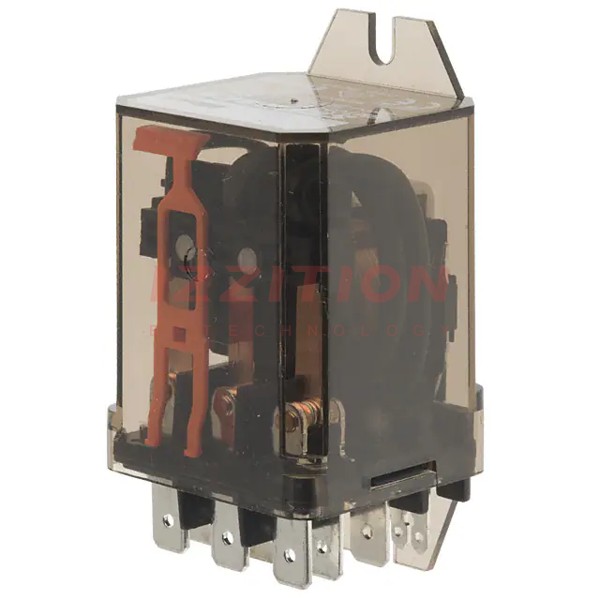

TE Connectivity Potter & Brumfield Relays RM835730
