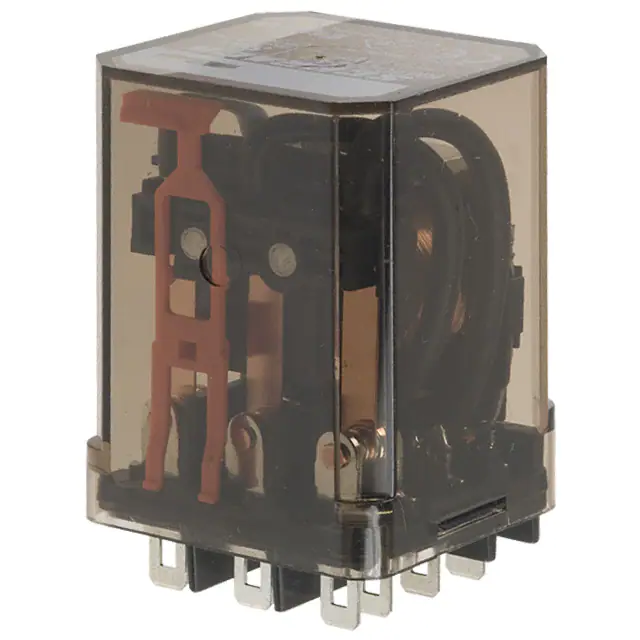

TE Connectivity Potter & Brumfield Relays-RM732221 - Power Relays, Over 2 Amps Product Specifications and Latest Quotes

Mounting Type:	Socketable
Coil Voltage:	220VDC
Contact Form:	3PDT (3 Form C)
Contact Rating (Current):	16 A
Switching Voltage:	440VAC - Max
Coil Current:	7.3 mA
Coil Type:	Non Latching
Features:	Mechanical Indicator, Test Button
Termination Style:	Plug In, Quick Connect - 0.187" (4.7mm)
Seal Rating:	-
Coil Insulation:	-
Must Operate Voltage:	165 VDC
Must Release Voltage:	22 VDC
Operate Time:	15 ms
Release Time:	10 ms
Operating Temperature:	-45°C ~ 60°C
Contact Material:	Silver Cadmium Oxide (AgCdO)
Relay Type:	General Purpose

TE Connectivity Potter & Brumfield Relays RM732221
