TE Connectivity Potter & Brumfield Relays-PT570220 - Power Relays, Over 2 Amps Product Specifications and Latest Quotes

Mounting Type:	Socketable
Coil Voltage:	220VDC
Contact Form:	4PDT (4 Form C)
Contact Rating (Current):	6 A
Switching Voltage:	240VAC - Max
Coil Current:	3.4 mA
Coil Type:	Non Latching
Features:	Mechanical Indicator, Test Button
Termination Style:	Plug In, Quick Connect - 0.110" (2.8mm)
Seal Rating:	-
Coil Insulation:	-
Must Operate Voltage:	165 VDC
Must Release Voltage:	22 VDC
Operate Time:	15 ms
Release Time:	10 ms
Operating Temperature:	-40°C ~ 70°C
Contact Material:	Silver Nickel (AgNi)
Relay Type:	General Purpose

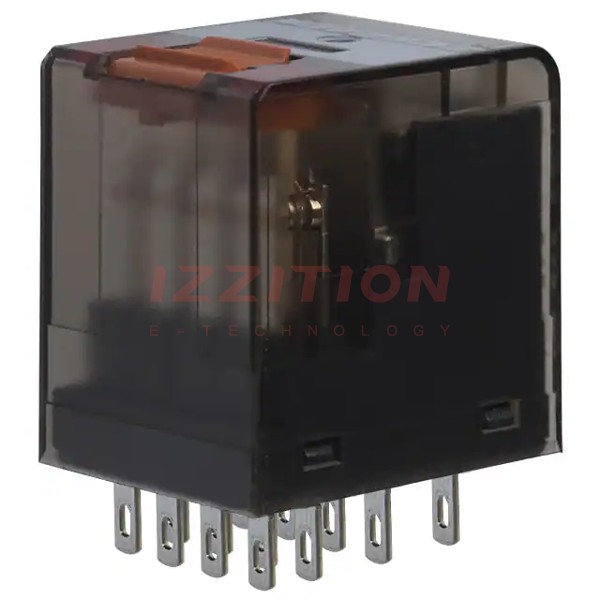

TE Connectivity Potter & Brumfield Relays PT570220
