TE Connectivity Potter & Brumfield Relays-PT370730 - Power Relays, Over 2 Amps Product Specifications and Latest Quotes

Mounting Type:	Socketable
Coil Voltage:	230VAC
Contact Form:	3PDT (3 Form C)
Contact Rating (Current):	10 A
Switching Voltage:	400VAC - Max
Coil Current:	-
Coil Type:	Non Latching
Features:	Mechanical Indicator, Test Button
Termination Style:	Plug In, Quick Connect - 0.110" (2.8mm)
Seal Rating:	-
Coil Insulation:	-
Must Operate Voltage:	184 VAC
Must Release Voltage:	69 VAC
Operate Time:	-
Release Time:	-
Operating Temperature:	-40°C ~ 70°C
Contact Material:	Silver Nickel (AgNi)
Relay Type:	General Purpose

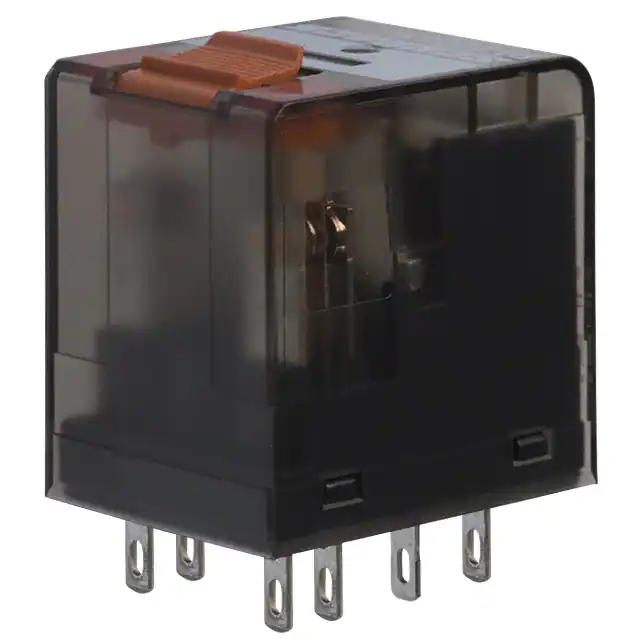

TE Connectivity Potter & Brumfield Relays PT370730
