TE Connectivity Potter & Brumfield Relays-PT2S7LC4 - Power Relays, Over 2 Amps Product Specifications and Latest Quotes

Mounting Type:	DIN Rail
Coil Voltage:	24VDC
Contact Form:	DPDT (2 Form C)
Contact Rating (Current):	12 A
Switching Voltage:	400VAC - Max
Coil Current:	30.8 mA
Coil Type:	Non Latching
Features:	Diode, Lighted Indicator, Mechanical Indicator, Socket Included, Test Button
Termination Style:	Screw Terminal
Seal Rating:	-
Coil Insulation:	-
Must Operate Voltage:	18 VDC
Must Release Voltage:	2.4 VDC
Operate Time:	15 ms
Release Time:	18 ms
Operating Temperature:	-40°C ~ 70°C
Contact Material:	Silver Nickel (AgNi)
Relay Type:	General Purpose

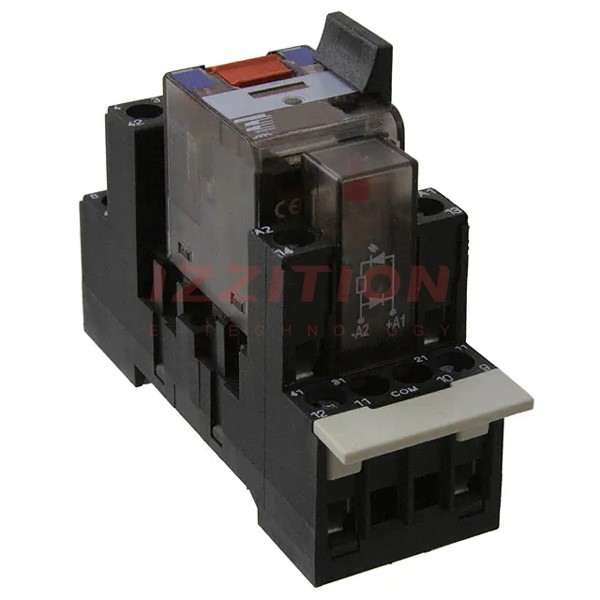

TE Connectivity Potter & Brumfield Relays PT2S7LC4
