PT22B024B

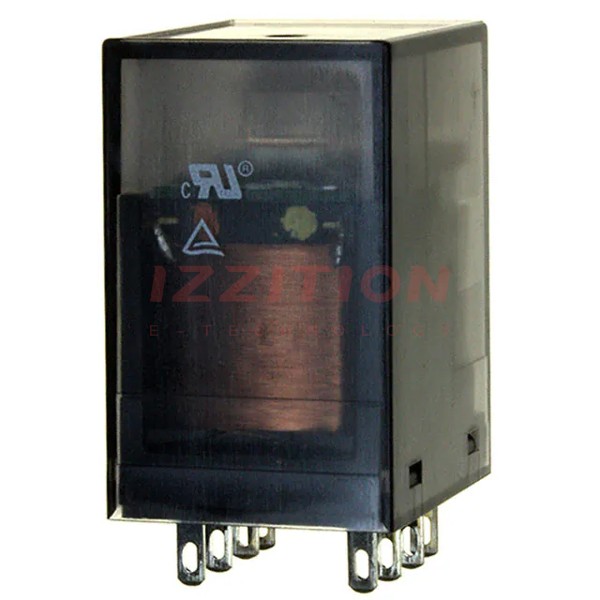

PT22B024B Image
×
Favorite
Compare
Add to RFQ
Share:
TE Connectivity Potter & Brumfield Relays PT22B024B
Manufacturer No:
PT22B024B
Manufacturer:
TE Connectivity Potter & Brumfield Relays
Package:
Bulk
Datasheet:
PT22B024B Datasheet
ECAD Model:
-
Description:
RELAY GEN PURPOSE DPDT 12A 24V
Delivery:
Payment:
Product Attributes
Mounting Type:
Through Hole
Coil Voltage:
24VDC
Contact Form:
DPDT (2 Form C)
Contact Rating (Current):
12 A
Switching Voltage:
440VAC - Max
Coil Current:
30.8 mA
Coil Type:
Non Latching
Features:
-
Termination Style:
PC Pin
Seal Rating:
-
Coil Insulation:
-
Must Operate Voltage:
18 VDC
Must Release Voltage:
2.4 VDC
Operate Time:
20 ms
Release Time:
20 ms
Operating Temperature:
-45°C ~ 70°C
Contact Material:
Silver Nickel (AgNi)
Relay Type:
General Purpose
0
Remaining
View Similar
In Stock
UnitPrice:
-
Quantity:
106
Please send RFQ , we will respond immediately.
