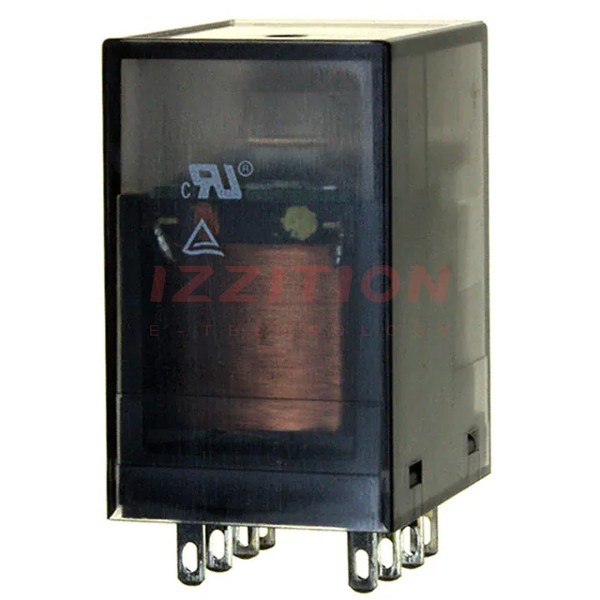

PT22A524B Image
×
Favorite
Compare
Add to RFQ
Share:
TE Connectivity Potter & Brumfield Relays PT22A524B
Manufacturer No:
PT22A524B
Manufacturer:
TE Connectivity Potter & Brumfield Relays
Package:
Bulk
Datasheet:
PT22A524B Datasheet
ECAD Model:
-
Description:
RELAY GEN PURPOSE DPDT 12A 24V
Delivery:
Payment:
Product Attributes
Mounting Type:
Socketable
Coil Voltage:
24VAC
Contact Form:
DPDT (2 Form C)
Contact Rating (Current):
12 A
Switching Voltage:
440VAC - Max
Coil Current:
41.6 mA
Coil Type:
Non Latching
Features:
-
Termination Style:
Plug In
Seal Rating:
-
Coil Insulation:
-
Must Operate Voltage:
38.4 VAC
Must Release Voltage:
7.2 VAC
Operate Time:
20 ms
Release Time:
20 ms
Operating Temperature:
-45°C ~ 70°C
Contact Material:
Silver Nickel (AgNi)
Relay Type:
General Purpose
0
Remaining
View Similar
In Stock
UnitPrice:
-
Quantity:
317
