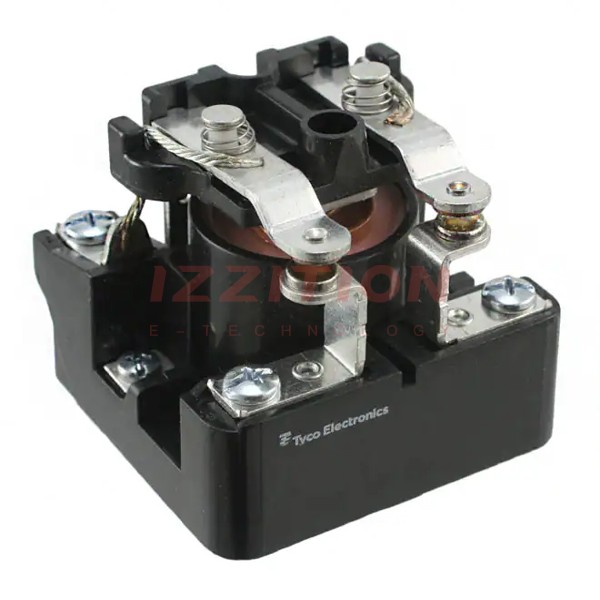

PRD-7AH0-120 Image
×
Favorite
Compare
Add to RFQ
Share:
TE Connectivity Potter & Brumfield Relays PRD-7AH0-120
Manufacturer No:
PRD-7AH0-120
Manufacturer:
TE Connectivity Potter & Brumfield Relays
Package:
Bulk
Datasheet:
PRD-7AH0-120 Datasheet
ECAD Model:
-
Description:
RELAY GEN PURPOSE DPST 20A 120V
Delivery:
Payment:
Product Attributes
Mounting Type:
Chassis Mount
Coil Voltage:
120VAC
Contact Form:
DPST-NO (2 Form A)
Contact Rating (Current):
20 A
Switching Voltage:
125VDC - Nom
Coil Current:
85 mA
Coil Type:
Non Latching
Features:
-
Termination Style:
Screw Terminal
Seal Rating:
-
Coil Insulation:
Class B
Must Operate Voltage:
102 VAC
Must Release Voltage:
12 VAC
Operate Time:
40 ms
Release Time:
20 ms
Operating Temperature:
-55°C ~ 45°C
Contact Material:
Silver (Ag)
Relay Type:
General Purpose
