PRD-11AG1-120

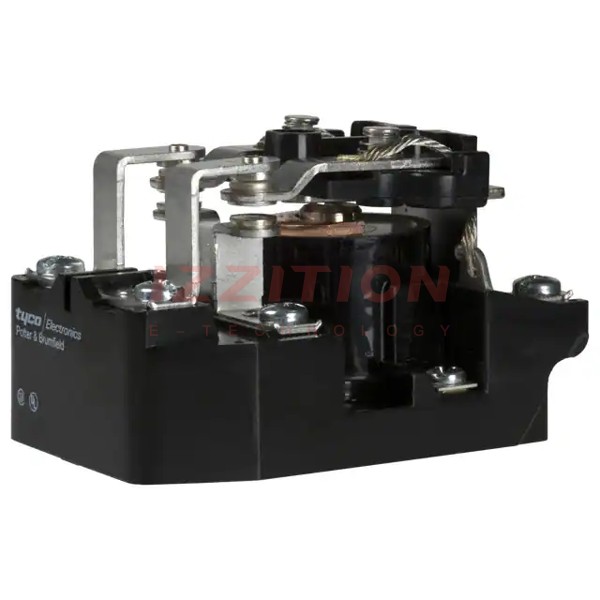

PRD-11AG1-120 Image
×
Favorite
Compare
Add to RFQ
Share:
TE Connectivity Potter & Brumfield Relays PRD-11AG1-120
Manufacturer No:
PRD-11AG1-120
Manufacturer:
TE Connectivity Potter & Brumfield Relays
Package:
Bulk
Datasheet:
PRD-11AG1-120 Datasheet
ECAD Model:
-
Description:
RELAY GEN PURPOSE DPDT 30A 120V
Delivery:
Payment:
Product Attributes
Mounting Type:
Chassis Mount
Coil Voltage:
120VAC
Contact Form:
DPDT (2 Form C)
Contact Rating (Current):
30 A
Switching Voltage:
240VAC - Nom
Coil Current:
85 mA
Coil Type:
Non Latching
Features:
-
Termination Style:
Quick Connect - 0.250" (6.3mm)
Seal Rating:
-
Coil Insulation:
Class B
Must Operate Voltage:
102 VAC
Must Release Voltage:
12 VAC
Operate Time:
40 ms
Release Time:
20 ms
Operating Temperature:
-55°C ~ 45°C
Contact Material:
Silver Cadmium Oxide (AgCdO)
Relay Type:
General Purpose
0
Remaining
View Similar
In Stock
UnitPrice:
$74.71
Quantity:
6
