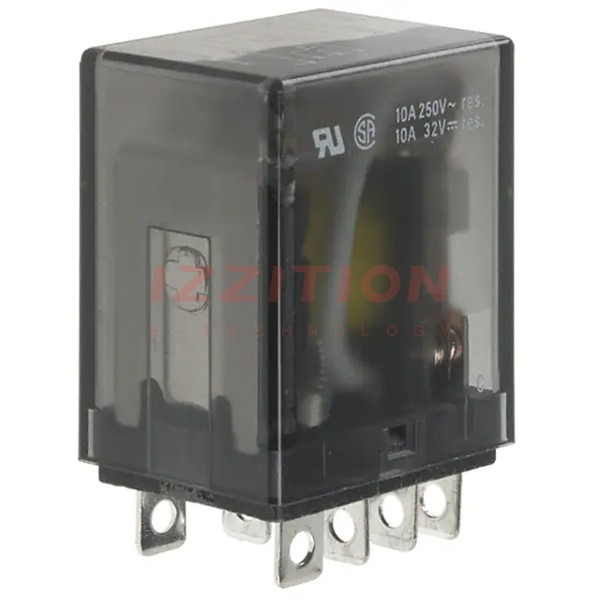

PCLH-203A1S,000 Image
×
Favorite
Compare
Add to RFQ
Share:
TE Connectivity Potter & Brumfield Relays PCLH-203A1S,000
Manufacturer No:
PCLH-203A1S,000
Manufacturer:
TE Connectivity Potter & Brumfield Relays
Package:
Tray
Datasheet:
PCLH-203A1S,000 Datasheet
ECAD Model:
-
Description:
RELAY GEN PURPOSE DPDT 15A 24V
Delivery:
Payment:
Product Attributes
Mounting Type:
Socketable
Coil Voltage:
24VAC
Contact Form:
DPDT (2 Form C)
Contact Rating (Current):
15 A
Switching Voltage:
120VAC - Max
Coil Current:
-
Coil Type:
Non Latching
Features:
-
Termination Style:
Plug In, Quick Connect - 0.187" (4.7mm)
Seal Rating:
-
Coil Insulation:
Class F
Must Operate Voltage:
19.2 VAC
Must Release Voltage:
7.2 VAC
Operate Time:
20 ms
Release Time:
20 ms
Operating Temperature:
-40°C ~ 55°C
Contact Material:
Silver Cadmium Oxide (AgCdO)
Relay Type:
General Purpose
