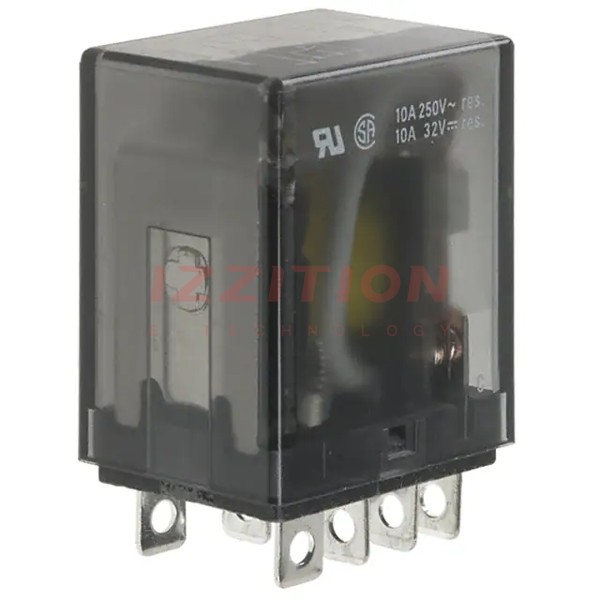

PCLH-103D1SP,000 Image
×
Favorite
Compare
Add to RFQ
Share:
TE Connectivity Potter & Brumfield Relays PCLH-103D1SP,000
Manufacturer No:
PCLH-103D1SP,000
Manufacturer:
TE Connectivity Potter & Brumfield Relays
Package:
Bulk
Datasheet:
PCLH-103D1SP,000 Datasheet
ECAD Model:
-
Description:
RELAY GEN PURPOSE SPDT 15A 24V
Delivery:
Payment:
Product Attributes
Mounting Type:
Through Hole
Coil Voltage:
24VDC
Contact Form:
SPDT (1 Form C)
Contact Rating (Current):
15 A
Switching Voltage:
250VAC, 24VDC - Max
Coil Current:
37.5 mA
Coil Type:
Non Latching
Features:
-
Termination Style:
PC Pin
Seal Rating:
-
Coil Insulation:
Class F
Must Operate Voltage:
19.2 VDC
Must Release Voltage:
2.4 VDC
Operate Time:
15 ms
Release Time:
8 ms
Operating Temperature:
-40°C ~ 55°C
Contact Material:
Silver Cadmium Oxide (AgCdO)
Relay Type:
General Purpose
