OZ-SS-103LM1,200
  • Share:

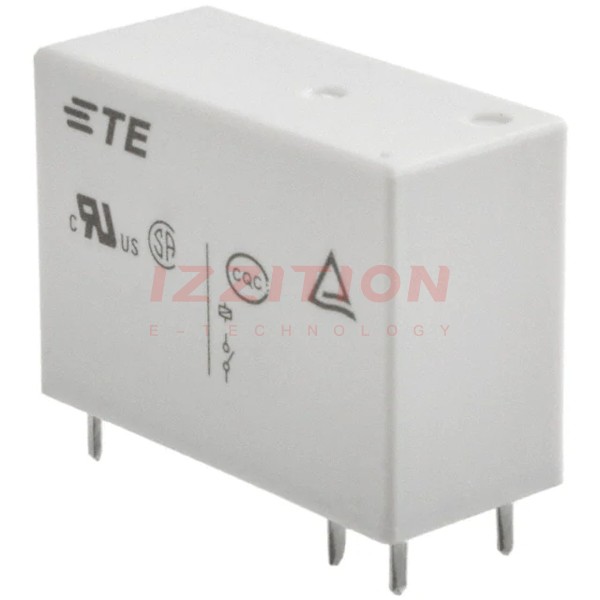

TE Connectivity Potter & Brumfield Relays OZ-SS-103LM1,200

Manufacturer No:
OZ-SS-103LM1,200
Manufacturer:
TE Connectivity Potter & Brumfield Relays
Package:
Tube
Datasheet:
OZ-SS-103LM1,200 Datasheet
ECAD Model:
-
Description:
RELAY GEN PURPOSE SPST 16A 3V
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Mounting Type:Through Hole
Coil Voltage:3VDC
Contact Form:SPST-NO (1 Form A)
Contact Rating (Current):16 A
Switching Voltage:240VAC, 24VDC - Max
Coil Current:176 mA
Coil Type:Non Latching
Features:-
Termination Style:PC Pin
Seal Rating:Sealed - Flux Protection
Coil Insulation:Class A
Must Operate Voltage:2.25 VDC
Must Release Voltage:0.15 VDC
Operate Time:20 ms
Release Time:8 ms
Operating Temperature:-30°C ~ 70°C
Contact Material:Silver Tin Oxide (AgSnO)
Relay Type:General Purpose
0 Remaining View Similar

In Stock

$3.66
44

Please send RFQ , we will respond immediately.
