TE Connectivity Potter & Brumfield Relays-OJ-SS-124HM2 - Power Relays, Over 2 Amps Product Specifications and Latest Quotes

Mounting Type:	Through Hole
Coil Voltage:	24VDC
Contact Form:	SPST-NO (1 Form A)
Contact Rating (Current):	10 A
Switching Voltage:	277VAC, 30VDC - Max
Coil Current:	18.8 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	PC Pin
Seal Rating:	Sealed - Flux Protection
Coil Insulation:	-
Must Operate Voltage:	16.8 VDC
Must Release Voltage:	1.2 VDC
Operate Time:	10 ms
Release Time:	4 ms
Operating Temperature:	-30°C ~ 85°C
Contact Material:	Silver Tin Oxide Indium Oxide (AgSnOInO)
Relay Type:	General Purpose

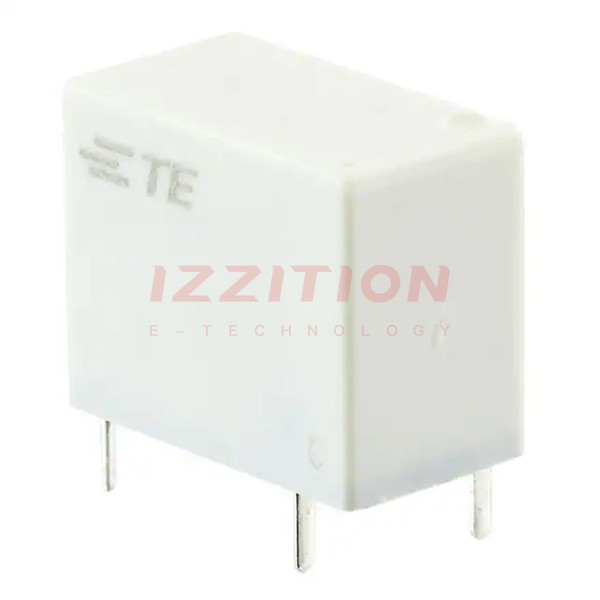

TE Connectivity Potter & Brumfield Relays OJ-SS-124HM2
