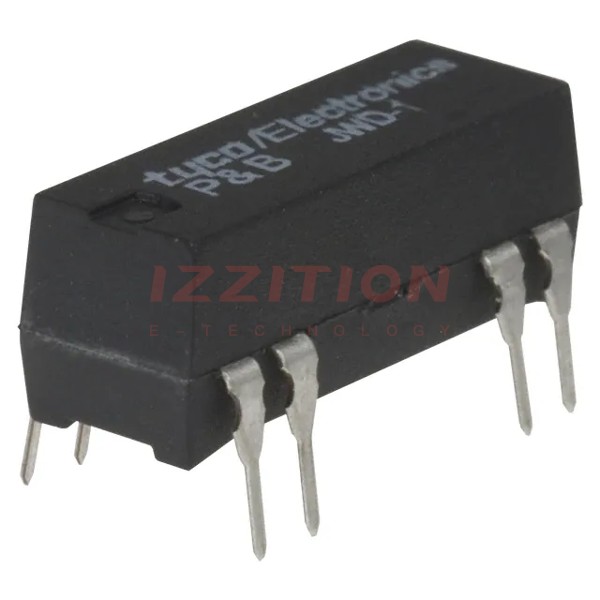

JWD-172-158 Image
×
Favorite
Compare
Add to RFQ
Share:
TE Connectivity Potter & Brumfield Relays JWD-172-158
Manufacturer No:
JWD-172-158
Manufacturer:
TE Connectivity Potter & Brumfield Relays
Package:
Tube
Datasheet:
JWD-172-158 Datasheet
ECAD Model:
-
Description:
RELAY REED SPDT 500MA 24V
Delivery:
Payment:
Product Attributes
Mounting Type:
Through Hole
Coil Voltage:
24VDC
Contact Form:
SPDT (1 Form C)
Contact Rating (Current):
500 mA
Switching Voltage:
28VDC - Max
Coil Current:
11.2 mA
Coil Type:
Non Latching
Features:
-
Termination Style:
PC Pin
Seal Rating:
-
Must Operate Voltage:
19.2 VDC
Must Release Voltage:
2 VDC
Operate Time:
1.5 ms
Release Time:
3 ms
Operating Temperature:
-35°C ~ 85°C
Contact Material:
Ruthenium (Ru)
0
Remaining
View Similar
In Stock
UnitPrice:
$15.12
Quantity:
36
